Fire Pump Test Header Guide for Reliable Testing
A fire pump can appear ready for service until a flow test exposes a restriction, damaged valve, or poorly configured discharge path. This fire pump test header guide covers the practical role of the test header, the components that affect usable test results, and the checks contractors and facility teams should make before a required performance test.
A test header is not simply a group of hose valves mounted outside the pump room. It is part of the fire pump acceptance and periodic testing arrangement. When configured correctly, it provides a controlled way to flow water from the pump through approved outlets so the testing party can document pump performance at churn, rated flow, and overload conditions as applicable.
What a Fire Pump Test Header Does

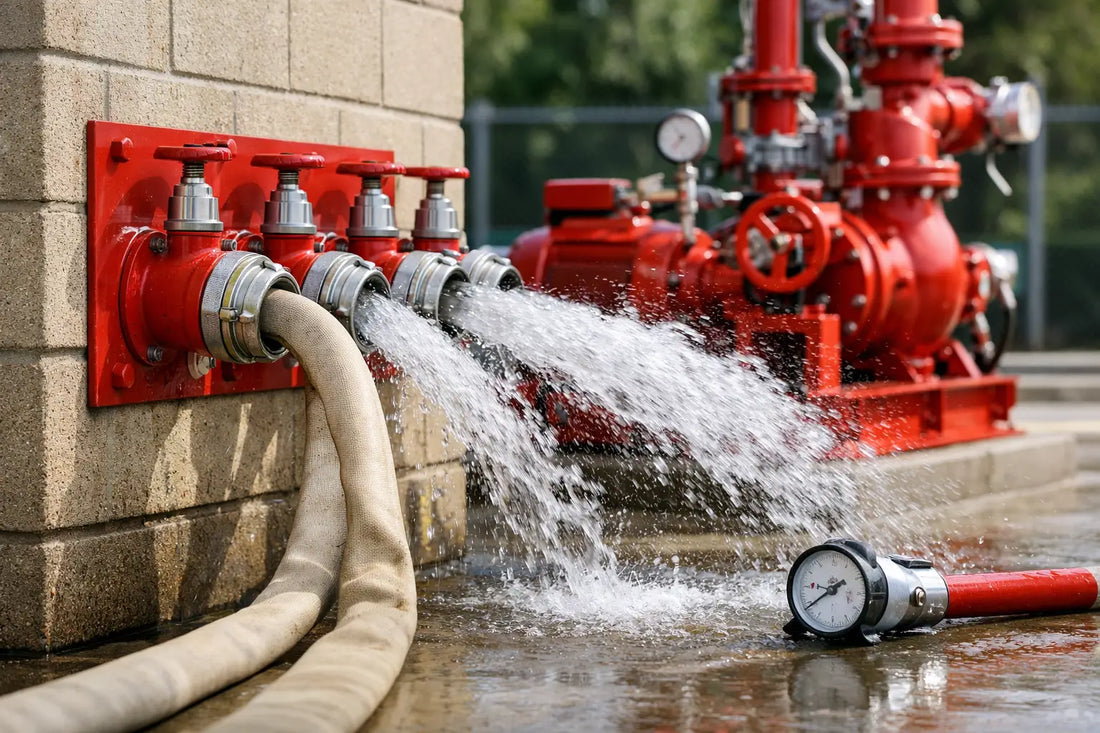

The test header provides exterior hose valve outlets connected to the fire pump discharge piping. During a flow test, hoses are attached to those outlets and routed to a safe discharge location. Test personnel then open the required outlets, establish the target flow, and record pressure, flow, speed, voltage, and other data appropriate to the pump driver and installation.
The objective is to compare actual pump performance with the pump's rated characteristics and prior test records. A pressure reading alone is not enough. The pump must move water at known flow points through a test setup that does not introduce avoidable restrictions or measurement errors.
For many installations, a properly sized test header remains the most practical method for annual flow testing because it can discharge water away from the building without sending large volumes through the sprinkler system. However, the right arrangement depends on the building, water supply, pump capacity, discharge routing, local conditions, and the authority having jurisdiction.
Fire Pump Test Header Guide: Core Components
A complete test header assembly generally includes a header manifold, listed hose valves, caps and chains, identification signage, and piping sized for the pump and planned testing method. The assembly should be selected as a system rather than pieced together based only on outlet count.
Header outlets and hose valves
Each outlet must provide sufficient flow capacity for the test. Hose valve size, valve type, hose connection, and the number of outlets all affect the total available discharge. A small pump may require fewer outlets than a high-capacity fire pump, but adding outlets without confirming supply piping and header sizing does not increase useful test capacity.
Hose valves need to operate smoothly, close fully, and have serviceable caps. Damaged threads, seized operating nuts, leaking stems, and missing caps can turn a routine test into a delay. Use durable, recognized fire protection components rather than substitute valves that were not intended for fire pump testing service.
Piping from the pump discharge
The piping between the fire pump discharge and test header has a direct effect on test results. Undersized piping, excessive fittings, improper valve positioning, or internal obstructions can create friction loss that makes the pump appear to perform below expectations. The arrangement must follow the applicable installation standard, approved plans, and manufacturer requirements.
Do not assume an existing header is correctly sized because it has been in place for years. Building alterations, pump replacements, and prior repairs can leave a header arrangement mismatched to the current pump. Verify the nameplate rating, discharge piping configuration, and available test outlets before scheduling work.
Caps, chains, and weather protection
Caps are small components with a large maintenance value. They help keep debris, insects, ice, and moisture out of the hose valve outlets. Caps should be present, threaded correctly, and secured with chains that do not interfere with attaching test hoses.
Where headers are exposed to weather or vehicle traffic, inspect the enclosure, clearance, drainage, and physical protection. An accessible header is necessary for testing, but access should not leave the assembly vulnerable to impact damage or unauthorized operation.
Signs and identification
Clear, permanent identification reduces confusion during an emergency and makes annual testing more efficient. The test header should be distinguishable from fire department connections and other exterior hose connections. Labeling should remain legible after years of sun exposure, repainting, and weather.
Sizing and Layout: Where Problems Start
Header selection begins with the fire pump rating, not a preferred manifold configuration. The test arrangement needs enough outlets and sufficient piping capacity to flow the required test volume without creating an unintended bottleneck. Applicable NFPA requirements provide the governing criteria, while the pump manufacturer, approved shop drawings, and AHJ direction resolve installation-specific questions.
Discharge location also matters. A high-flow test can produce significant water volume in a short period. Hoses must be routed so discharge does not erode soil, enter electrical areas, flood loading docks, block traffic, damage landscaping, or create hazardous icy conditions. A test header that is technically installed but cannot be used safely is not an operational solution.
Consider these conditions during design, replacement, or retrofit work:
- Can the required number of hoses be connected and deployed without crossing an active vehicle route or public walkway?
- Is the discharge area capable of handling the anticipated water volume without property damage or unsafe runoff?
- Are valves, caps, threads, and signs accessible without ladders, obstructions, or confined working space?
- Does the header remain protected from freezing, corrosion, accidental impact, and unauthorized use?
Inspection Checks Before a Flow Test
A pre-test inspection helps prevent wasted mobilization time and protects the system from avoidable damage. Start with the visible condition of the header and work back toward the pump room. Confirm that outlet caps are removable, hose threads are clean, valves are closed before hose connection, and there is no obvious leakage or corrosion.
Inside the pump room, review the pump controller status, valve supervision, suction and discharge valve positions, and any impairments that could affect the test. Verify that gauges are in serviceable condition and that the test plan identifies who will monitor pump operation, manage hoses, record readings, and communicate with building operations.
For diesel-driven pumps, fuel level, batteries, coolant, engine condition, and exhaust considerations deserve attention. For electric-driven pumps, testing personnel should understand the electrical hazards and coordinate with qualified personnel when measurements or controller access are required. Do not use a flow test as an opportunity to troubleshoot live equipment without a defined procedure and the right expertise.
Getting Accurate, Defensible Test Results
Repeatable testing is as valuable as the single test result. Use calibrated or otherwise verified measuring equipment, record the same meaningful data points each year, and note changes in test setup. If the hose layout, flow-measuring method, nozzle arrangement, water supply condition, or discharge elevation changes, document it. Those changes can explain differences that might otherwise be blamed on the pump.
Flow readings should be taken with a method appropriate for the test configuration. Pitot readings at hose nozzles require correct nozzle condition, stable streams, proper pitot placement, and accurate calculations. Poor hose routing, partially opened valves, kinked hose, or a nozzle too close to an obstruction can compromise the result.
Compare current readings with the pump's certified performance information and previous records. A gradual decline may indicate wear, suction supply issues, valve problems, obstruction, or a change in the test arrangement. A sudden change can point to a more immediate mechanical or instrumentation issue. Neither situation should be dismissed without investigation.
Replacement and Retrofit Decisions
Replace test header components when corrosion affects integrity, valve operation is unreliable, threads are damaged, caps no longer protect outlets, or the assembly no longer matches the installed pump and approved configuration. Replacement is also reasonable when a building renovation changes access or drainage around the header.
When sourcing components, confirm connection sizes, thread type, pressure rating, material compatibility, listing requirements, and the exact intended application. A contractor-friendly parts source can help identify compatible manifolds, hose valves, caps, gauges, and related fire pump components, but final installation decisions must align with project documents and local approval requirements.
Keep the pump nameplate data, prior test reports, header dimensions, and clear photos available before ordering. Those details reduce incorrect part selection and make custom quote support more useful when a standard assembly will not fit the installation.
A test header should make required fire pump testing safer, more repeatable, and easier to document. If the existing arrangement leaves doubt about flow capacity, condition, or discharge safety, address it before the next scheduled test instead of discovering the problem with hoses charged and the building relying on the pump.
