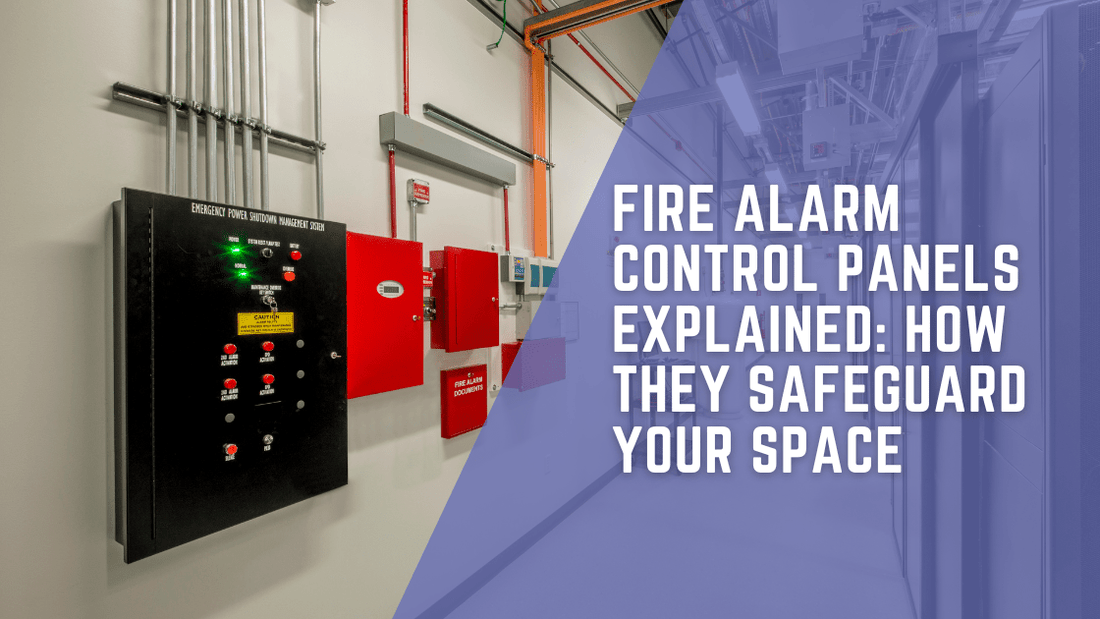

Fire Alarm Control Panels Explained: How They Safeguard Your Space

Fire alarm control panels are essential for monitoring and managing fire safety systems. They detect smoke, heat, and other signs of fire, triggering alarms and guiding emergency responses.

This crucial device ensures that fire safety equipment functions properly, protecting buildings and occupants. Understanding how these panels operate helps ensure they’re working effectively

This blog helps you learn how fire alarm control panels work and the way they monitor fire safety devices.

What is a Fire Alarm Control Panel?

A Fire Alarm Control Panel (FACP) is the central component of a building's fire alarm system. Its primary role is to monitor and control the various fire detection and alarm devices installed throughout a property.

The control panel acts as the system’s "brain," receiving signals from devices like smoke detectors, heat detectors, and manual pull stations. When a potential fire threat is detected, the FACP processes this input and triggers alarms, sending notifications to alert building occupants and emergency responders.

In addition to handling alarms, the FACP is responsible for overseeing system health. It can identify faults, signal malfunctions, and communicate with other connected devices, such as sprinkler systems and emergency lights.

By integrating all of these components, the FACP ensures that the entire fire alarm system functions smoothly and effectively, providing real-time monitoring and alerts to maintain safety.


How a Fire Alarm Control Panel Works?

Monitoring and Detection

A Fire Alarm Control Panel (FACP) continuously monitors input devices such as smoke detectors, heat detectors, and manual pull stations. These devices are placed throughout a building to detect signs of fire, such as rising temperatures or smoke.

The FACP constantly checks these sensors for changes or alerts, ensuring the system is always ready to respond. This real-time monitoring is crucial for early detection of potential hazards, which can significantly reduce response times in case of an emergency.

Signal Processing

When one of the input devices detects a potential fire hazard, it sends a signal to the FACP. The panel then processes this signal to determine the severity of the situation. There are typically two types of signals that the panel handles:

    1. These indicate a confirmed fire hazard, triggering immediate response actions like alarms and notifications.
    2. These inform the panel of system issues, such as wiring faults or device malfunctions, which need attention but don't necessarily signal a fire emergency.

      The FACP’s ability to differentiate between these signals helps prevent unnecessary panic while ensuring prompt response to real fire hazards.

      Notification and Alarm Activation

      Once the FACP identifies a fire threat through its signal processing, it activates the notification system. This includes audible alarms (such as sirens or bells) and visual alerts (like flashing strobes) to warn occupants of the building.

      In larger systems, it may also trigger speakers to provide voice instructions. Beyond just alerting people inside the building, the FACP can also notify external monitoring stations or local fire departments to ensure a quick emergency response.

      System Alerts and Troubleshooting

      The FACP is designed to catch more than just fire alarms. It also tracks system health by identifying false alarms, malfunctions, or maintenance needs.

      If a sensor is faulty, has low battery, or there’s a break in the system’s wiring, the FACP generates a trouble signal, prompting maintenance personnel to address the issue.

      This troubleshooting feature ensures that the system stays operational and can be trusted when needed most.

      Manual Override

      In addition to automatic operations, the FACP offers manual control features. Authorized personnel can use these controls to silence alarms, reset the system after an alert, or even manually trigger alarms if a fire is observed but hasn’t yet been detected by the system.

      This flexibility is key during both false alarms and actual emergencies, providing additional safety and control for building managers or emergency responders.

      Maintenance and Testing of Fire Alarm Control Panels

      Regular maintenance and testing of a Fire Alarm Control Panel (FACP) ensures the system functions properly when needed. Ensure you have routinely checked the following areas when conducting maintenance.

      Power Supply

      Ensure that both the primary power source and the backup battery supply are functioning correctly. Check for proper voltage levels and confirm that the backup battery has sufficient charge to operate the system in the event of a power outage.

      Zones

      Test each zone of the fire alarm system by triggering detectors or pull stations to ensure the FACP accurately identifies the correct zone. This helps verify that the system can correctly locate and respond to potential fires in different areas of the building.

      Signals

      Verify that the FACP properly processes signals from various devices. This includes:

        1. Alarm signals from smoke or heat detectors.
        2. Trouble signals to identify any issues like wiring faults or malfunctioning sensors.
        3. Supervisory signals for any controlled devices like sprinkler systems or emergency fans.

          Regulatory Requirements or Standards

          Fire alarm systems, including the FACP, must comply with various regulatory requirements to ensure safety and functionality. One of the primary standards for fire alarm systems is NFPA 72, the National Fire Alarm and Signaling Code, which outlines guidelines for system installation, maintenance, and testing.

          NFPA 72 specifies that fire alarm systems should be tested at least annually. Some components require more frequent inspections, such as weekly or monthly checks of power supplies and batteries.

          Compliance with these standards not only ensures the system works effectively but also helps avoid fines or legal liabilities for building owners and managers. Regular testing and maintenance in accordance with NFPA 72 are critical for both safety and regulatory compliance.

          Conclusion

          Understanding how a Fire Alarm Control Panel works can make a huge difference in ensuring building safety. Regular maintenance and testing are crucial for preventing failures and keeping occupants safe.

          Personally, I’ve seen how a well-maintained system can save lives, and I can’t stress enough how important it is.
