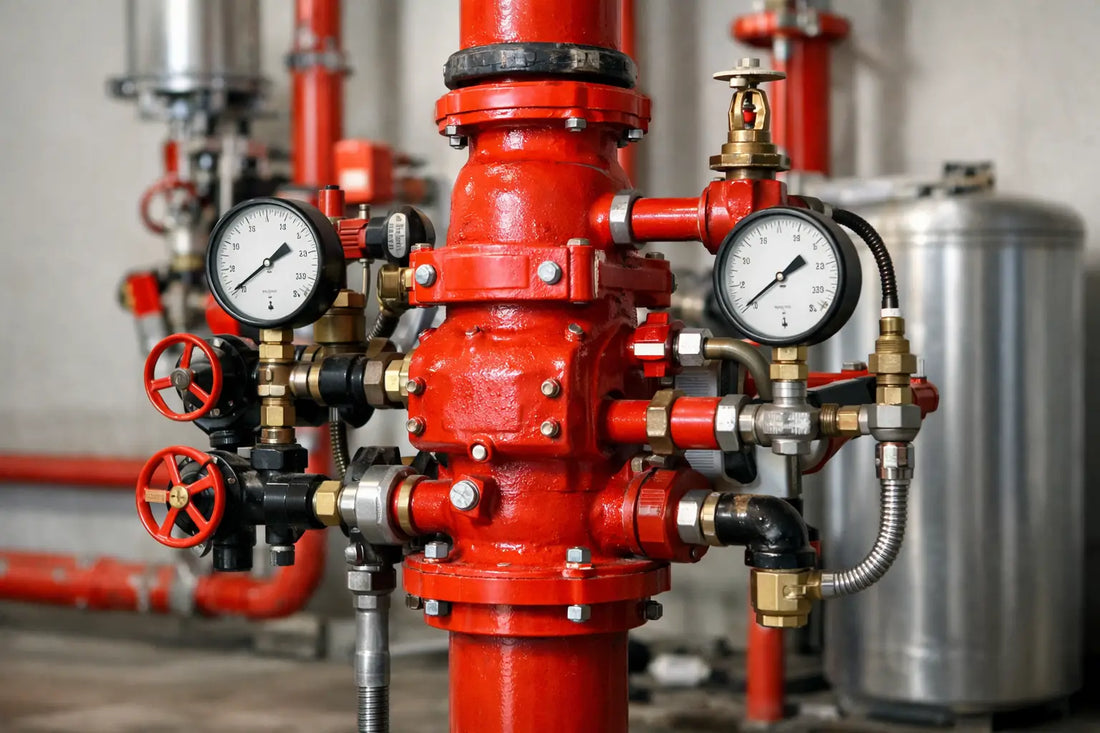

Fire Sprinkler Riser Manifold Assembly Basics

A failed riser room inspection rarely comes down to one dramatic mistake. More often, it is a missing trim component, an incorrect valve arrangement, a gauge in the wrong range, or a manifold assembly that does not match the system design. That is why the fire sprinkler riser manifold assembly deserves more attention than it usually gets during procurement.

For contractors, facilities teams, and maintenance buyers, this assembly is not just a collection of valves and fittings mounted on pipe. It is the control point for water delivery, supervisory monitoring, testing, and serviceability. When it is specified correctly, installation moves faster and future inspections are more straightforward. When it is pieced together without enough attention to compatibility and code intent, the problems tend to surface later - during acceptance testing, repairs, or an emergency event.

What a fire sprinkler riser manifold assembly does

A fire sprinkler riser manifold assembly brings together the core control and monitoring components that support a sprinkler system riser. Depending on the system type and application, that can include the indicating control valve, waterflow switch, pressure gauges, test and drain arrangement, check valve, supervisory devices, relief valve, and related trim.

In a wet pipe system, the assembly is typically designed to provide a clear path for water supply, isolation for maintenance, monitoring for system status, and a practical way to test operation without disassembling core components. In dry, preaction, or special hazard applications, the riser arrangement becomes more specialized, and the manifold may need to coordinate with air supply equipment, releasing trim, or more complex valve logic.

That is where buyers need to slow down. “Riser manifold assembly” is often used broadly in the field, but the actual bill of materials can vary significantly based on occupancy, system type, local authority requirements, and the manufacturer’s listed configuration.

Why assembly details matter more than they seem

On paper, many riser layouts look similar. In the field, small differences matter. A listed butterfly valve may be acceptable in one setup, while another design calls for a specific OS&Y arrangement. A waterflow device may meet the basic requirement, but the trim orientation and available clearance may make service access harder than it needs to be.

There is also the issue of consistency. If a project uses trusted, matched components from recognized manufacturers, troubleshooting tends to be cleaner. Replacement parts are easier to identify, warranty questions are simpler to resolve, and inspection personnel have fewer reasons to question the installation. That does not mean every riser needs a premium configuration with every optional accessory. It means the assembly should fit the actual job, not just the nearest available substitute.

For retrofit work, the trade-offs are even more obvious. Space constraints, legacy piping layouts, and mixed-brand installed bases can push buyers toward compromise. Sometimes that is reasonable. Sometimes it creates more labor, more adaptation in the field, and a harder service path for the next contractor who has to touch it.

Core components in a fire sprinkler riser manifold assembly

The exact configuration depends on the system, but most assemblies center on a few critical elements.

The control valve is the first major decision point. Whether the design calls for an indicating butterfly valve, gate valve, or OS&Y valve, the selection has to align with the listing, pressure rating, and intended supervisory setup. If tamper monitoring is required, the valve and switch arrangement should be selected as a working package, not as separate afterthoughts.

The check valve is just as important in systems where backflow prevention within the riser arrangement is needed. Its role may sound straightforward, but pressure loss, orientation, maintenance access, and compatibility with the trim package can all affect performance and serviceability.

Then there is the inspector’s test and drain assembly. This is one of the most commonly scrutinized parts of the riser because it directly affects testing efficiency and verification. A poorly selected test and drain setup can create confusion during inspections, especially if the orifice sizing does not match the remote sprinkler calculation requirement.

Pressure gauges, switches, and trim fittings may seem secondary, but they are often where quality differences show up first. Cheap gauges fail early. Questionable trim corrodes faster. Poorly matched supervisory devices complicate commissioning. On life safety systems, those are not minor inconveniences.

Wet pipe versus dry and preaction configurations

A wet pipe fire sprinkler riser manifold assembly is usually the most straightforward to source and install, but even then, pressure range, valve style, and trim layout need to be considered. In dry and preaction systems, the manifold arrangement becomes more application-specific. Air maintenance devices, accelerator or exhaust accessories, and release-related trim all influence what the final assembly should include.

That is why contractors often prefer sourcing from suppliers that understand the difference between a general riser package and a configuration built around a specific system valve. It saves time and reduces the chance of field modifications that were avoidable from the start.

How to evaluate the right assembly for the job

Start with the system type and the approved design documents. That sounds obvious, but many ordering mistakes happen when buyers rely on a previous project’s setup or a partial field note instead of the current plans and submittals. The right assembly is the one that matches the engineered intent, the listing requirements, and the inspection expectations for that installation.

Next, look at pressure and connection requirements. The assembly has to match not only the pipe size but also the working pressure and the broader system conditions. High-rise work, fire pump-fed systems, and municipal supply variations can all affect component choice.

Access matters too. A manifold that technically fits the design but leaves no room to service a switch, replace a gauge, or operate a test valve creates avoidable labor later. In a busy riser room, service clearance is not a luxury. It is part of a practical, durable installation.

Brand consistency is another factor. Many buyers prefer Viking, Reliable, Potter, Zurn Wilkins, Ames, and other established fire protection manufacturers because listing confidence and replacement support matter over the long run. That does not mean mixing brands is always wrong. It means each component should be selected with a clear understanding of compatibility, approvals, and service implications.

Common sourcing mistakes

The biggest mistake is treating the manifold as a commodity. Two assemblies may look close enough in a photo but differ in listing, trim completeness, switch compatibility, or pressure rating. That usually shows up as a delay, a return, or field rework.

Another common issue is ordering for price first and labor second. A cheaper assembly can become more expensive quickly if it arrives incomplete, requires extra fittings, or does not align with the intended supervision and drain arrangement. For contractors working against deadlines, that is not a good trade.

There is also the problem of partial replacement thinking. On repair and retrofit jobs, buyers sometimes replace the most obvious failed component without evaluating whether the surrounding manifold parts are near the end of service life. If the gauges, switches, trim, and valve internals are all aging together, replacing one piece may only postpone the next service call.

What to look for in a supplier

For this category, technical support is part of the product. Buyers need clear specifications, recognizable manufacturer options, and confidence that the assembly being quoted matches the actual application. Fast shipping helps, but speed alone is not enough if the package arrives with the wrong trim or a non-matching device setup.

A dependable supplier should also understand when a standard stocked option works and when a custom quote is the better path. That is especially relevant for specialized valves, retrofit dimensions, or assemblies tied to manufacturer-specific trim requirements. Fire Protection Parts serves this kind of buyer well because the value is not just inventory depth - it is the ability to source code-compliant components without forcing contractors into low-quality substitutes.

The practical takeaway for contractors and facilities teams

A fire sprinkler riser manifold assembly should make the system easier to install, inspect, and maintain. If it creates uncertainty at any of those points, it is probably the wrong package or an incomplete one. The best buying decision is usually the one that reduces field adaptation, supports inspection readiness, and preserves long-term serviceability with trusted, listed components.

When you are comparing assemblies, think beyond the immediate line item. Think about the acceptance test, the annual inspection, the next repair, and the person standing in front of that riser room years from now. If the assembly supports all of that cleanly, you are buying the right way.
