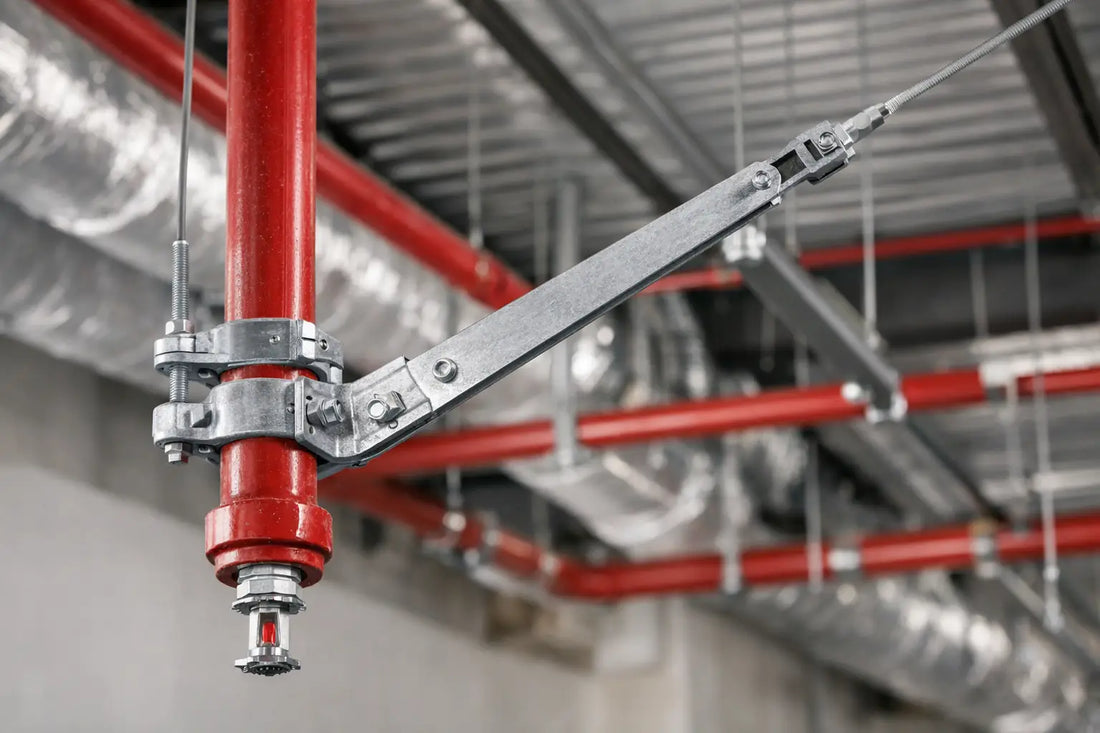

Fire Sprinkler Seismic Bracing Guide for Contractors
A sprinkler system can be fully functional before an earthquake and still become compromised when pipe shifts, mains collide with structure, or fittings separate under seismic movement. This fire sprinkler seismic bracing guide is built for contractors, facilities teams, and project buyers who need to make sound decisions about bracing components, layout coordination, and code-driven installation.
Seismic bracing is not an accessory added after the pipe is hung. It is part of the system's restraint strategy. Properly designed and installed bracing helps keep sprinkler piping in position during seismic activity so the system is more likely to remain intact and available when it is needed.
What Seismic Bracing Is Designed to Do
Hangers support the dead weight of sprinkler pipe, fittings, valves, and water. Seismic braces serve a different purpose: they limit horizontal movement caused by earthquake forces. Treating a hanger as a brace, or assuming closely spaced hangers provide seismic restraint, is a common and costly mistake.
A typical bracing design addresses movement in more than one direction. Lateral sway bracing restrains pipe movement perpendicular to the run, while longitudinal sway bracing restrains movement parallel to the run. Depending on the system layout and applicable requirements, a piping assembly may also need four-way bracing, riser restraint, and flexible connections where the system crosses seismic or building separation joints.
The objective is not to make every section of pipe completely rigid. Piping needs a defined, engineered path for movement while avoiding damage to sprinkler heads, branch lines, structural members, and connected equipment. That balance is why brace location, angle, attachment method, and component listing matter.
Fire Sprinkler Seismic Bracing Guide: Start With the Governing Design
Do not begin by selecting brace hardware from pipe size alone. The accepted design basis should come first. For most commercial sprinkler work, that means reviewing the adopted edition of NFPA 13, the project specifications, approved drawings, seismic design information, and requirements from the authority having jurisdiction.
Seismic requirements can change with the building's seismic design category, occupancy, system type, ceiling configuration, pipe size, and the conditions above the ceiling. A warehouse with exposed mains and steel structure presents different coordination issues than a hospital renovation with congested interstitial space. A dry system may introduce additional concerns because pipe weight, drainage, and compressor connections affect the overall layout.
The sprinkler contractor should verify the following before ordering material or beginning installation:
- The applicable code edition and project-specific seismic criteria.
- Pipe sizes, schedules, and materials for mains, cross mains, and branch lines.
- Approved structural attachment points and allowable fastening methods.
- Locations of expansion or seismic separation joints, risers, and vertical piping.
- Conflicts with ductwork, cable tray, lighting, ceilings, and other trades.
Use Listed, Compatible Bracing Components
A compliant seismic brace assembly is a system of components, not merely a piece of angle iron connected to a pipe clamp. The assembly may include a pipe attachment, brace member, structural attachment, fasteners, and, where required, approved hardware that keeps the brace geometry intact under load.
Use components that are listed or approved for the intended application and installed within the manufacturer's published limitations. This is especially important when mixing brands or substituting hardware. A clamp may fit the pipe and still be unsuitable for a seismic brace if it was not evaluated for the required load, angle, or attachment arrangement.
Common brace-member options include steel pipe and steel angle, with proprietary listed sway-brace systems also widely used. The correct choice depends on the approved design, load calculations or tabulated requirements, field conditions, and installer preference. Proprietary systems can simplify selection and installation when crews need consistent, compatible parts. Field-fabricated assemblies can be appropriate when designed and installed correctly, but they demand closer attention to material dimensions, connections, and documentation.
Structural attachments deserve the same scrutiny as pipe attachments. A brace connected to steel, concrete, or wood framing must use a method permitted for that substrate and load. Do not attach to ceiling grid, ductwork, conduit supports, or a structural element that has not been approved as a brace point. When in doubt, coordinate with the structural engineer, general contractor, or AHJ before drilling or welding.
Brace Locations Must Follow the Pipe Layout
The approved layout determines where braces belong. Long runs of main and cross-main pipe usually require a planned combination of lateral and longitudinal restraint. The spacing, maximum distance to the end of a line, and required bracing near changes in direction are governed by the applicable standard and project design.
This is where field changes can create hidden compliance issues. Moving a tee, extending a main, changing pipe diameter, or rerouting around a beam may alter brace spacing or leave a section without adequate restraint. Any meaningful field revision should be checked against the approved design rather than handled as a simple pipe adjustment.
Brace angle also matters. A brace that is too flat may not provide the intended restraint, while a brace that is too steep can fall outside the allowable range for its listed assembly or design method. Installers should maintain the specified geometry and avoid improvising around obstructions with offset rods, unapproved couplers, or attachments that change the load path.
Clearance is another practical issue. Seismic movement can bring pipe into contact with adjacent systems if the installation is too tight. Coordinate required clearances at walls, penetrations, ceiling openings, and nearby mechanical equipment. Where piping crosses a building seismic joint, use the arrangement specified by the design rather than trying to bridge the joint with conventional rigid pipe and bracing.
Pay Close Attention to Risers and Vertical Pipe
Risers are critical transition points in a sprinkler system. They connect horizontal distribution piping to supply piping, fire department connections, floor control assemblies, and other equipment that must remain protected during an earthquake.
Vertical pipe may require restraint at specified intervals, and the riser itself may need to accommodate differential building movement. Flexible couplings, flexible fittings, and properly detailed connections are often part of the solution, but the exact arrangement depends on the system design and the building condition. A flexible coupling is not a substitute for required bracing, and a brace is not a substitute for a required flexible connection.
During retrofit work, inspect the existing riser arrangement carefully. Older systems may have pipe supports that appear substantial but do not meet current seismic requirements. Confirm the condition of existing anchors, structural members, threaded connections, and corrosion-prone areas before building new restraint around them.
Avoid These Field Failures
The most common seismic bracing problems are rarely dramatic at the time of installation. They are small shortcuts that become visible during inspection or, worse, during a seismic event. Watch for braces attached to nonstructural elements, missing longitudinal restraint, unsupported brace members, incorrect pipe clamps, and braces installed at unapproved angles.
Another recurring issue is incomplete coordination. A brace may be correct on the shop drawing but impossible to install after ductwork, electrical tray, or hard ceilings are in place. Early BIM coordination and field verification are worthwhile, particularly on dense commercial projects. If the structural attachment is not accessible, revise the layout through the proper approval process instead of creating a field workaround.
Documentation matters as well. Keep approved drawings, product data, installation instructions, and any engineering information available to the installation and inspection teams. Clear documentation makes it easier to confirm that the installed assembly matches the approved design and that listed components were used as intended.
Procurement Practices That Protect the Schedule
Seismic bracing material is often treated as a miscellaneous package, which can lead to shortages late in the job. Build the material takeoff from the approved layout and account for pipe attachments, structural attachments, brace members, bolts, nuts, washers, inserts, and application-specific accessories. Verify finish and material compatibility where corrosion resistance or environmental exposure is a concern.
For replacement and retrofit work, identify the existing pipe size, material, structural substrate, and available installation clearance before ordering. Photographs, field dimensions, and approved system information can reduce back-and-forth and help avoid purchasing a component that is listed for the wrong application.
Fire Protection Parts supports contractors and facilities buyers with dependable, code-conscious fire protection components from trusted manufacturers, including specialized parts that may be difficult to source on short notice. For any seismic bracing package, match the purchase to the approved design and manufacturer requirements rather than selecting on appearance or price alone.
A well-braced sprinkler system is the result of disciplined coordination: the right design criteria, listed hardware, suitable structural attachment, and careful installation. When those details are handled before the pipe is overhead and the ceiling is closed, the system is better positioned to protect lives, assets, and the project schedule.
