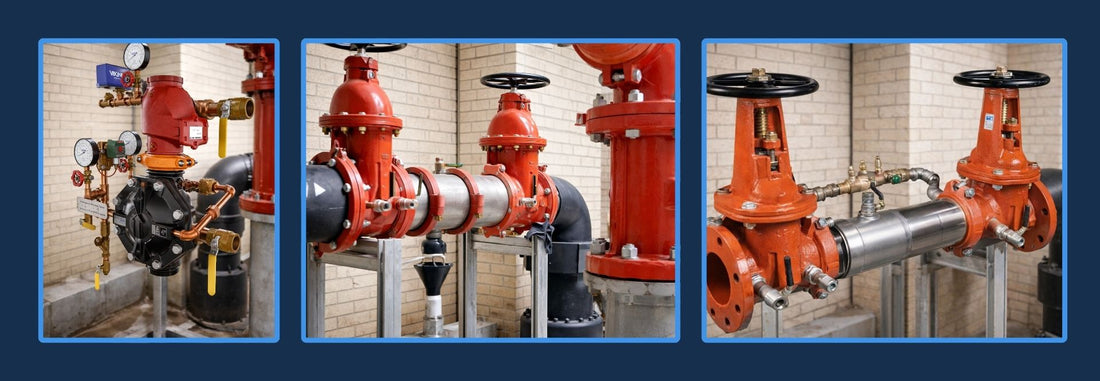

What Is a Check Valve? Working Principle, Types, and Fire Protection Uses

In the world of fluid dynamics and fire suppression, control is everything. But control is not always about manual levers or electronic actuators; sometimes, the most critical safety mechanism is entirely automatic. This is where the check valve comes into play.

A check valve, often called a non-return or one-way valve, permits fluid, typically water in fire setups, to flow in one direction while automatically blocking reverse flow. This simple yet critical function prevents backflow that could drain sprinklers, damage pumps or compromise pressure during emergencies. Its importance spans across various industries, from basic plumbing and HVAC systems to sophisticated industrial pipelines and, crucially, fire protection networks.

In fire sprinkler networks, a failing check valve does not just mean a leak; it can mean a pump failure or a system that fails to meet code during an inspection. Therefore, understanding what a check valve is, how it works, and the different types available helps contractors, engineers, and facility managers select the right valve for reliable performance.

What Is a Check Valve?

To understand the meaning of a check valve, you have to look at it as a directional gatekeeper. Unlike a gate valve or a globe valve, which require a human or a motor to open and close, a check valve is flow-sensitive. It relies on the pressure of the fluid itself to function.

A check valve, also commonly known as a non-return valve or a one-way valve, is a mechanical device that permits fluid (liquid or gas) to flow through it in only one direction. It is a self-contained unit that prevents "backflow", a condition where the flow reverses direction due to a drop in upstream pressure or an increase in downstream pressure.

Because they function without external intervention, they are categorized as automatic valves, providing a fail-safe layer in complex piping infrastructures.

How Does a Check Valve Work?

The working principle of a check valve is rooted in "cracking pressure". This is the minimum upstream pressure required to move the internal closing element (the disc, ball, or flap) away from the valve seat, and it occurs through the following process:

• Pressure-based Opening Mechanism

When the pressure on the inlet side exceeds the cracking pressure, the valve opens, allowing the fluid to pass through. As long as the pressure remains high enough, the valve stays open.

• Automatic Closing During Flow Reversal

If the pump shuts off or the pressure drops, the flow naturally slows. Gravity or a spring-loaded mechanism then pushes the internal disc back against the seat. If the fluid tries to move backwards, the reverse pressure actually pushes the disc tighter into the seat, creating a leak-proof seal that prevents backflow.

• Why no manual control is required

The beauty of this design is that it's entirely self-actuating; no manual control is required. This, thereby, makes the check valves reliable and essential components in systems where continuous, unidirectional flow is vital.  This "no-manual-control" design is what makes them indispensable, as they respond to physical reality faster than any electronic sensor could.

Why Are Check Valves Critical in Fire Protection Systems?

In fire protection, water is the primary weapon, but it must be managed with extreme precision. Industrial check valves are used throughout sprinkler systems for several high-stakes reasons:

• Preventing Reverse Water Flow

In systems connected to both a municipal water supply and a fire pump, check valves ensure that highly pressurized water from the fire pump doesn't force its way back into the city’s clean drinking water.

• Protecting Pumps and Risers

When a fire pump shuts off, a massive column of water in a vertical riser wants to fall back down. Without a check valve, this "water hammer" could shatter the pump casing or damage expensive fittings.

• Maintaining System Pressure Integrity

For dry pipe or pre-action systems, check valves help maintain the necessary air or water pressure levels required by NFPA standards.

• Support code-compliant sprinkler operation

NFPA 13, 14, and 20 specifically mandate the use of check valves at various points, such as the Fire Department Connection (FDC), to ensure water pumped by a fire truck goes into the building and not back out the intake.

For contractors, system designers and building owners, selecting the right valve is essential. Explore our Valves and Systems collection for fire-rated check valves designed for sprinkler and standpipe installations.

Types of Check Valves

Selecting the right type of check valve hinges on flow rate, pressure, orientation, and media. Here's a breakdown of common variants for fire pros.

• Swing Check Valve

The swing check valve is one of the most common types, particularly in fire protection. It features a disc that swings on a hinge or pivot. When forward flow occurs, the disc swings open, allowing fluid to pass. When the flow reverses, the disc swings back to seat against an opening, preventing backflow.

• Common in fire sprinkler risers: Their design allows for full, unobstructed flow when open, making them suitable for applications with low-pressure drop requirements.

• Advantages: Simple design, relatively low pressure drop, and can handle some solids in the fluid.

• Limitations: Can be noisy with pulsating flow, and the swinging disc requires adequate space for operation.

• Lift (Spring-Loaded) Check Valve

A lift check valve uses a disc or piston that lifts off its seat when forward flow occurs. Often, a spring assists in closing the valve more rapidly when flow stops or reverses.

• Vertical/horizontal installation: Can be installed in either orientation, though spring-loaded versions are more versatile for vertical down-flow applications.

• Faster response time: The spring-assisted closure makes them suitable for applications where rapid shut-off is critical to prevent water hammer.

• Used in specific low-pressure applications: While versatile, they typically have a slightly higher pressure drop than swing check valves.

• Ball Check Valve

In a ball check valve, a free-floating or spring-loaded ball is used as the closure mechanism. In forward flow, the ball is pushed away from its seat. In reverse flow, the ball is forced back onto the seat by back-pressure, creating a seal.

• Ball-sealing mechanism: Offers a tight seal, especially in specific low-pressure applications or those involving viscous fluids.

• Used in specific low-pressure applications: Less common in large fire sprinkler mains, but can be found in smaller lines or specialty systems.

• Wafer & Dual Plate Check Valves

These are compact and lightweight designs, often installed between two flanges.

• Wafer check valves: Generally, have a single disc or plate that pivots or lifts.

• Dual plate check valves: Feature two semi-circular plates that fold back when flow is forward and snap shut when flow reverses.

• Compact footprint: Their slim design saves space, making them ideal for high-flow and industrial environments where space is at a premium. They also offer excellent performance in terms of low pressure drop and reduced water hammer.

Check Valve vs Alarm Valve (Key Differences)

While both are crucial components in fire protection, the alarm valve vs check valve distinction is significant.

A check valve is a purely mechanical device designed solely for unidirectional flow control—preventing backflow. It operates automatically based on pressure differential.

An alarm valve, on the other hand, is a specialized type of check valve used in wet-pipe sprinkler systems. Its primary function, beyond preventing backflow, is to sound an alarm when there is a sustained flow of water into the sprinkler system, indicating that a sprinkler head has activated.

• Functional Differences

A check valve only controls flow direction. An alarm valve not only controls flow direction but also incorporates a mechanism (like a retard chamber and pressure switch) to detect water flow and trigger an alarm.

When an alarm valve is required

Alarm valves are mandatory in wet pipe sprinkler systems where local alarms are needed to signal system activation.

How alarm valves integrate with fire alarm systems

When water flows through an alarm valve to the sprinkler heads, it lifts a clapper, allowing water to enter a retard chamber and activate a pressure switch, which then sends a signal to the building's main fire alarm control panel. This panel then activates local bells and horns and transmits a signal to the fire department.

For specialized valves that integrate alarm functionality, visit our Alarm Valves collection.

Common Applications of Check Valves

Check valves are universal due to their simple yet vital function. Beyond fire protection, their industrial check valve applications are vast:

• Fire Sprinkler Systems

Fire sprinkler systems maintain pressure, prevent backflow, and protect pumps.

• Standpipe Systems

They are essential for maintaining water in standpipes for firefighters.

• Plumbing and Water Supply

This prevents contaminated water from flowing back into potable water lines and ensures pumps retain prime.

• Industrial Fluid Systems

This system is used in chemical processing, oil and gas, and manufacturing to control the flow of various liquids and gases, preventing process contamination or equipment damage.

• HVAC Systems

It prevents refrigerant or water backflow in heating and cooling coils.

Check Valve Installation Considerations

Proper check valve installation is critical for its effective and reliable operation. This is why it must be considered:

• Flow Direction Arrows

Most check valves have an arrow cast into their body indicating the correct direction of flow. Installing it backwards will completely block the system or render it inoperable.

• Vertical vs Horizontal Mounting

Some check valves are designed for specific orientations (e.g., a standard swing check valve might need to be installed horizontally for the disc to operate correctly), while others (like spring-assisted lift checks) are more versatile. Always refer to manufacturer specifications.

• Pressure Ratings and Pipe Sizing

Ensure the valve's pressure rating matches or exceeds the system's maximum operating pressure. The valve should also be appropriately sized for the pipe to avoid excessive pressure drop or inadequate flow.

• Accessibility for Inspection and Testing

Install check valves in locations that are easily accessible for routine inspections, maintenance and testing, which is especially important in fire protection systems.

Maintenance, Testing, and Common Failures

Regular check valve maintenance and testing are crucial for ensuring their long-term reliability, especially in life-safety systems. Below are common failures associated with check valves and how testing and maintenance would help spot them:

• Sticking or Delayed Closure

Debris, corrosion, or wear can cause the valve's closure mechanism to stick open or close slowly, leading to water hammer or ineffective backflow prevention.

• Internal Leakage

Over time, the seating surface or closure mechanism can wear, leading to internal leakage (a slight drip or trickle even when the valve is supposed to be closed).

• Inspection Frequency in Fire Systems

NFPA standards mandate regular inspection and testing of check valves in fire protection systems. This can range from visual inspections to full operational tests, depending on the valve's role.

• When Replacement is Recommended

If a check valve consistently fails to operate correctly, shows signs of significant wear or corrosion, or cannot be repaired, replacement is the safest course of action.

Check Valve Symbols and System Diagrams

Engineers and technicians rely on standardized symbols to represent components in system diagrams.

• Common P&ID symbols

In Piping and Instrumentation Diagrams (P&IDs), check valves are typically represented by an arrow pointing in the direction of permitted flow, with two lines forming a "V" shape against it, indicating the closure mechanism.

• Reading check valves on fire system drawings

Fire sprinkler drawings will use similar symbols, often emphasizing their placement relative to other critical components like alarm valves, risers and pumps. Understanding these symbols is essential for proper installation, troubleshooting and system design.

Frequently Asked Questions

Q: Can you use a Class A extinguisher on an electrical fire?

No. Class A extinguishers typically contain water, which is a conductor of electricity. Using it on an electrical fire could lead to electrocution. Always use a non-conductive agent for electrical fires, like a CO2 or dry chemical extinguisher.

Q: What happens if a check valve fails in a fire sprinkler system?

If it fails "open", you may experience significant backflow, which can contaminate water supplies or cause pump damage. If it fails "closed", water will be blocked from reaching the sprinkler heads during a fire, thereby leading to a catastrophic failure.

Q: Is a check valve required by fire code?

Yes. NFPA codes require check valves at the Fire Department Connection (FDC), at the discharge side of fire pumps, and at the lead-in to most sprinkler risers.

Q: Can a check valve replace an alarm valve?

No. Alarm valves provide monitoring and alarm functions, while check valves only prevent backflow.

Q: How often should check valves be inspected?

The inspection frequency for check valves, particularly in fire protection systems, is typically mandated by local fire codes and NFPA standards. This can range from quarterly visual inspections to annual internal inspections and operational tests, depending on the type of system and the valve's critical function. In most jurisdictions, a visual inspection is required quarterly, with more "hands-on" internal inspections or flow tests occurring every 1 to 5 years.

Conclusion

The check valve plays an important role in maintaining the safety, integrity and operational efficiency of countless systems, most notably in fire protection. Understanding its working principle, the different types of check valves and their specific applications is fundamental for fire protection contractors, facility managers, and engineers alike.

By ensuring the correct valve type is selected, installed properly and maintained routinely, this critical component will perform its silent duty, safeguarding lives and property when it matters most.

For contractors, engineers and facility managers, choosing the right valve type is key. Explore our Valves and Systems collection and Alarm Valves collection to find high-quality components designed for fire protection networks.
