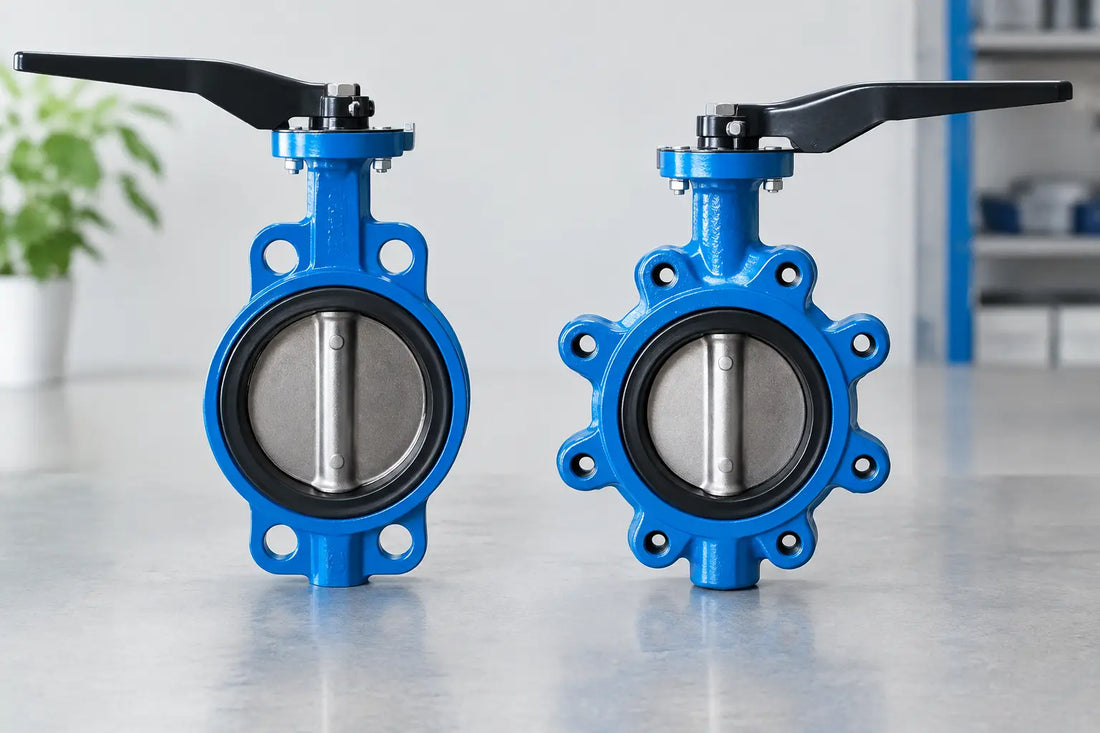

Wafer Versus Lug Butterfly Valves Compared
A valve body that looks nearly identical from the operator side can create a very different installation condition at the flange. When comparing wafer versus lug butterfly valves, the key distinction is not simply price or weight. It is how the valve is retained between pipe flanges, whether a section can be removed, and what the manufacturer allows under pressure.
For fire protection contractors and facilities teams, that distinction affects replacement planning, impairment procedures, flange hardware, and long-term serviceability. The correct choice must also satisfy the valve listing, approval, system design, and authority having jurisdiction requirements. A lug-style body is not automatically the better valve, and a wafer-style body is not automatically the lower-risk choice. The application decides.
Wafer Versus Lug Butterfly Valves: The Basic Difference
A wafer butterfly valve has a compact body that fits between two flanges. Long bolts or studs pass through one flange, through the valve body, and into the opposite flange. The flanges and through-bolts together clamp the valve in place. The valve body is generally centered using alignment features or flange bolt patterns.
A lug butterfly valve also fits between flanges, but its body has threaded or through-drilled lugs around the perimeter. Each side of the valve can use separate bolts. Instead of relying on bolts that extend all the way through the assembly, the valve body provides individual connection points for each flange.
That body design is the practical difference. A wafer valve depends on both flanges and the full-length fasteners to remain secured. A lug valve may allow one adjacent pipe section to be removed while the valve remains bolted to the opposite flange, but only when the specific valve is rated and installed for that condition.
How the Connection Style Affects Service Work
The most cited advantage of a lug valve is maintenance access. In an approved dead-end service arrangement, the downstream flange and pipe can be removed while the valve remains attached to the upstream side. This can simplify certain repairs and equipment changes.
That capability has limits. It does not mean a fire sprinkler system can be opened casually or that the valve can safely retain system pressure in every direction, at every size, and under every installation condition. Dead-end pressure ratings vary by manufacturer, valve size, pressure class, disc position, and service. Always review the product submittal and installation instructions rather than assuming that lugs alone establish a dead-end rating.
A wafer valve generally requires both flanges to stay in place to maintain the assembly. If a downstream component needs replacement, the work typically involves separating the flanged connection and supporting the adjacent piping as needed. On a tightly scheduled repair, that can add labor. On a straightforward new installation, it may be inconsequential.
For an active fire protection system, either scenario requires disciplined impairment management. Notify the appropriate parties, follow the site's impairment procedure, isolate and drain the affected portion as required, and return the system to service under the applicable inspection and testing process. A valve-body configuration does not replace safe fire protection work practices.
Installation Considerations That Matter in Fire Protection
The valve must match the piping system, not just the nominal pipe size. Verify the flange standard, face-to-face dimension, bolt-hole pattern, pressure rating, and the manufacturer-approved gasket arrangement. A valve that physically fits between flanges may still be unsuitable if its listing or approval does not cover the intended service.
Disc clearance also deserves attention. Butterfly valve discs rotate into the pipe bore. Certain flange types, internal pipe linings, reducers, or mating components can interfere with disc travel. Before tightening bolts, confirm that the disc can cycle fully without contact and that the valve is oriented according to the manufacturer's instructions.
Proper flange alignment is especially critical with wafer bodies. Misaligned pipe can force the valve out of center, damage the seat, restrict disc movement, or create uneven gasket compression. Do not use flange bolts to pull badly misaligned pipe into position. Correct the piping support and alignment first.
Lug valves bring their own installation checks. Bolt engagement must be correct for the lug design, and installers should use the specified bolt type and length. Bolts that are too long can bottom out or interfere internally. Bolts that are too short may not provide adequate thread engagement. Follow the manufacturer's torque sequence and torque values rather than tightening by feel.
Operator and Supervision Requirements
In fire sprinkler service, a butterfly valve is often part of a supervised control-valve assembly. The valve may require a gear operator, supervisory switch, tamper arrangement, or other listed configuration to meet the system design and code requirements. Selecting a body style without confirming the complete valve assembly can create a field problem later.
Confirm whether the application calls for a listed indicating butterfly valve, a grooved-end valve, a flanged valve, or another approved control-valve arrangement. Also verify the required pressure rating and temperature limits. Fire protection components should be selected as a compatible assembly, not as isolated line items.
When a Wafer Butterfly Valve Is the Better Fit
Wafer butterfly valves are often a practical choice where the piping will remain assembled and the priority is a compact, economical flanged connection. Their lighter body can simplify handling, particularly when crews are working overhead or in congested mechanical spaces.
They are well suited to applications where future removal of one side of the piping is not a design requirement. Many projects favor wafer valves because they provide the needed shutoff function with fewer body features and a lower installed material cost.
A wafer valve can also be the sensible replacement choice when matching an existing valve station with limited clearance. Still, confirm face-to-face dimensions and actuator clearance. A seemingly small difference in operator height or body geometry can affect nearby pipe, hangers, walls, or access panels.
When a Lug Butterfly Valve Justifies the Added Cost
A lug-style valve is often specified where future downstream maintenance is expected or where the piping layout makes section removal difficult. It can be particularly useful near strainers, backflow assemblies, pumps, specialty equipment, or equipment connections that may need service during the building's life.
The added body material and individual bolting points may increase cost and weight. That trade-off is worthwhile when approved dead-end service or easier access will reduce future labor and outage time. It is less compelling when the valve will remain undisturbed for years and both flanges are readily accessible.
For retrofit work, lug valves can also help when a contractor needs more controlled disassembly on one side of the connection. But the existing flange condition, pipe support, available bolt clearance, and exact valve rating still determine whether that approach is appropriate.
A Practical Selection Checklist
Before ordering either style, verify these project details with the drawings, valve schedule, and manufacturer documentation:
- Required listing and approval for the intended fire protection service
- Nominal size, flange standard, pressure rating, and compatible gasket requirements
- Valve orientation, disc clearance, and available operator clearance
- Required supervisory switch, gear operator, and indicating arrangement
- Whether approved dead-end capability is required
- Access for inspection, testing, repair, and future valve replacement
Do Not Treat Body Style as the Whole Specification
Wafer and lug bodies describe the connection design, but they do not tell the whole story about valve suitability. Seat material, disc material, stem design, coating, pressure rating, operator type, listing status, and supervisory compatibility all matter. Two valves with the same nominal size and body style can have very different approved uses.
For commercial and industrial fire protection work, use the submitted valve data as the controlling reference. Confirm that the selected model matches the approved system documents and that any substitutions are reviewed before installation. No cheap substitutes belong in a life safety system where compatibility and documented performance matter.
When the job calls for a hard-to-source replacement or an exact listed configuration, Fire Protection Parts can help identify the valve style and supporting components that match the application. The best choice is the one that fits the approved system today and makes responsible service work easier tomorrow.
