Viking

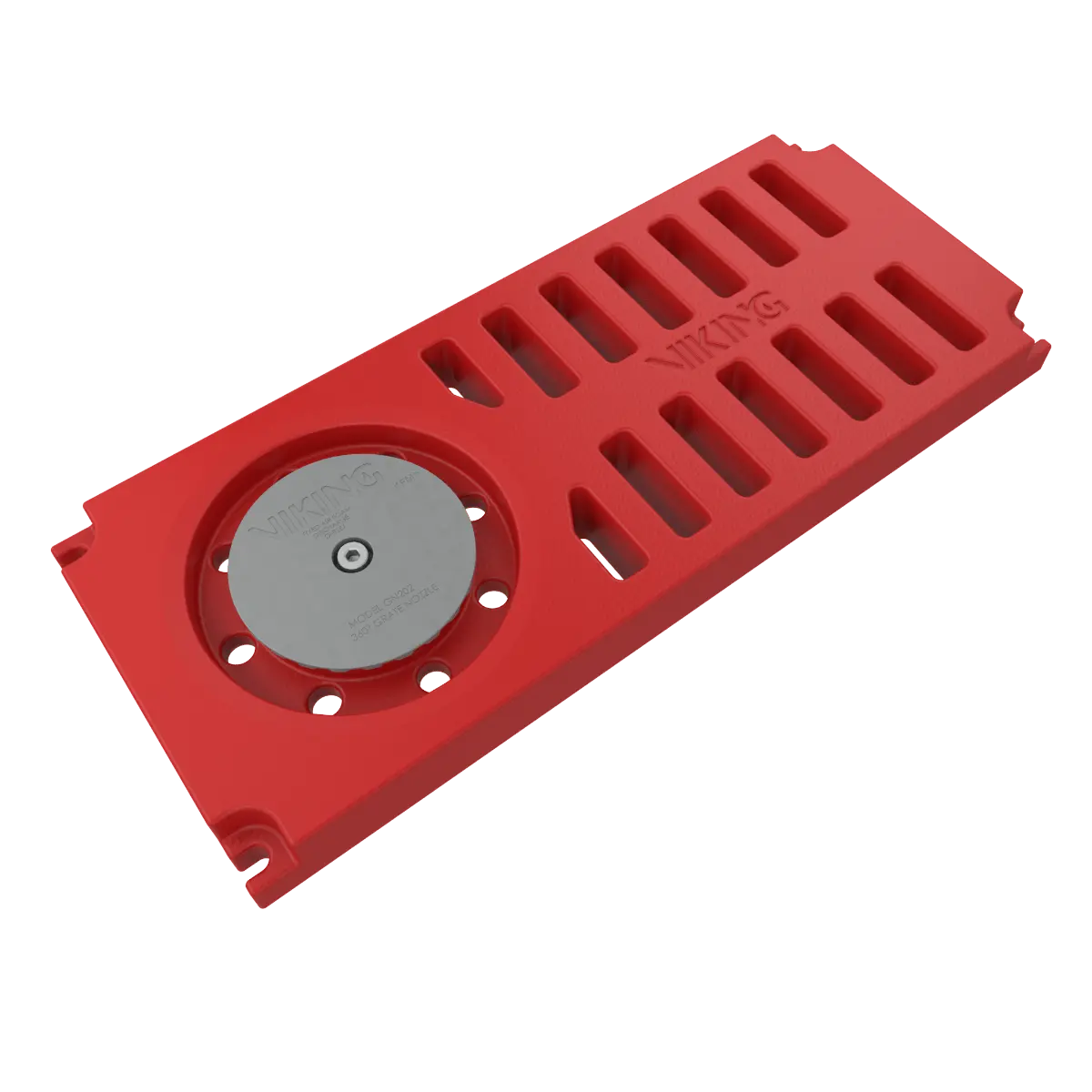

Model GN202 Grate Nozzles For Aircraft Hangars

Model GN202 Grate Nozzles For Aircraft Hangars

Product code: F24829

In stock: 3861

Regular price $5,699.99
Regular price $6,269.99 Sale price $5,699.99
9% OFF
Add To Compare

Fast Shipping To USA & Canada

100% Satisfaction Guaranteed

365-Day Warranty

Description

The Viking Model GN202 Grate Nozzle is a specialized low-expansion foam discharge device engineered for floor trench drains in high-risk aviation environments, including aircraft hangars and helipads. This component integrates directly into drainage systems to provide rapid, targeted floor-level suppression against Class B flammable liquid and fuel spill fires. Its flush-mount assembly maintains a level, trip-free surface that preserves workspace operations and drainage efficiency across busy service floors.

Designed to satisfy stringent regulatory mandates, this device complies with NFPA 409 standards for aircraft hangars, ensuring reliable fire protection design and construction. The assembly is UL Listed, FM Approved, and explicitly approved for use with Viking USP synthetic fluorine-free foam concentrates to meet code compliance requirements.

Key Features & Construction

  • Corrosion-Resistant Materials: Built with a UNS S31600 stainless steel nozzle body, paired with a ductile iron grate and X-frame support (ASTM A536 Grade 80-55-06) to withstand harsh aviation environments.
  • Customizable Coverage Patterns: Available in 360°, 180°, and 90° foam discharge angles to match specific facility layouts and hazard zones, covering spacing requirements up to 50’ x 25’ (15.2 m x 7.6 m).
  • Flexible Sizing: Offered in 26-inch, 20-inch, and 555 mm width configurations to fit diverse trench drain designs.
  • Flush-Mount Architecture: Installs flush with companion grates to eliminate trip hazards and support heavy equipment traffic in hangars.

Technical Specifications & Compliance

Specification Detail
Manufacturer / Brand Viking
Model / Series Number / SIN Model GN202 (Item Number: F24832-01)
Connection / Size Type Widths: 26", 20", and 555 mm
Pressure Rating (WWP) N/A
K-Factor N/A
Temperature Rating / Response Type N/A
Material / Body Construction Nozzle: UNS S31600 Stainless Steel; Grate and X-Frame: Ductile Iron (ASTM A536 Grade 80-55-06)
Agency Listings & Approvals UL Listed, FM Approved, Approved for use with Viking USP synthetic fluorine-free foam concentrate
Applicable NFPA Standards NFPA 409

Submittal & Installation Note: Contractors must verify specific local Authority Having Jurisdiction (AHJ) requirements, system hydraulic calculations, and foam proportioning system compatibility prior to installation. Always consult the manufacturer's official technical data sheets and installation manuals.

Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)

More Information
Item Number F24832-01
