Reliable Sprinkler

Reliable F1Res58 K5.8 Residential Pendent Sprinkler

Reliable F1Res58 K5.8 Residential Pendent Sprinkler

Product code: 58P1BN

In stock: 120

Regular price $71.99
Regular price $79.99 Sale price $71.99
10% OFF
Add To Compare

Fast Shipping To USA & Canada

100% Satisfaction Guaranteed

365-Day Warranty

Description

Overview

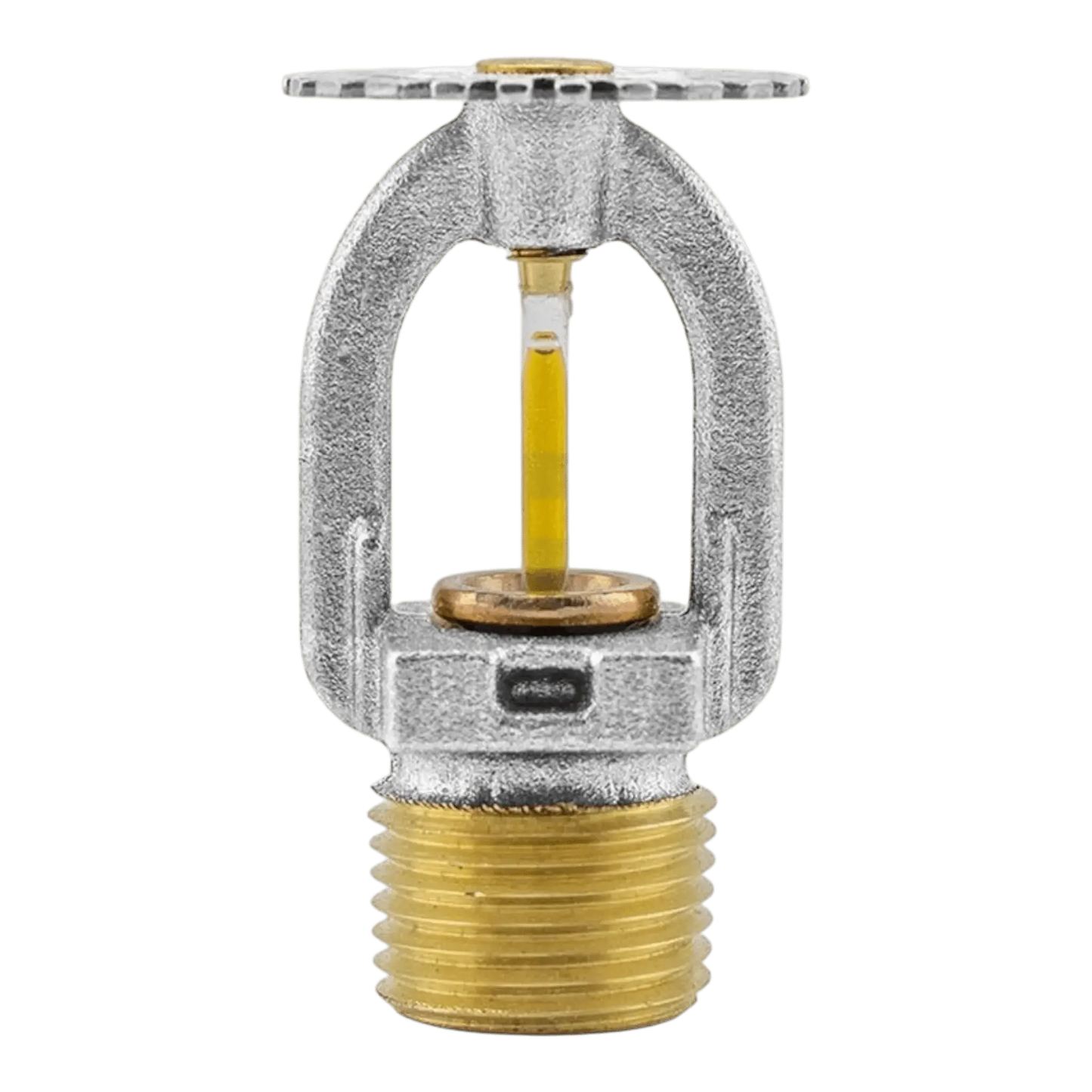

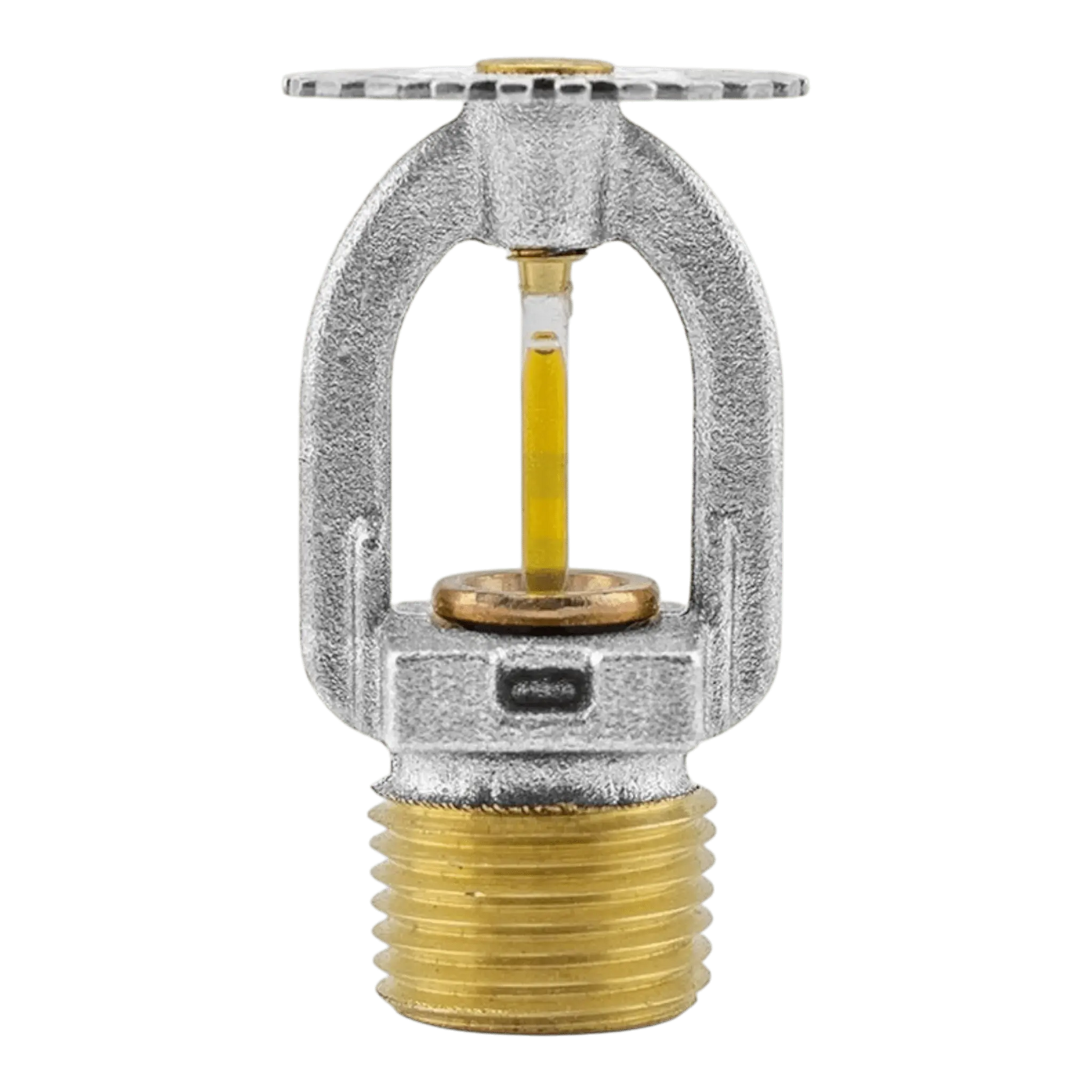

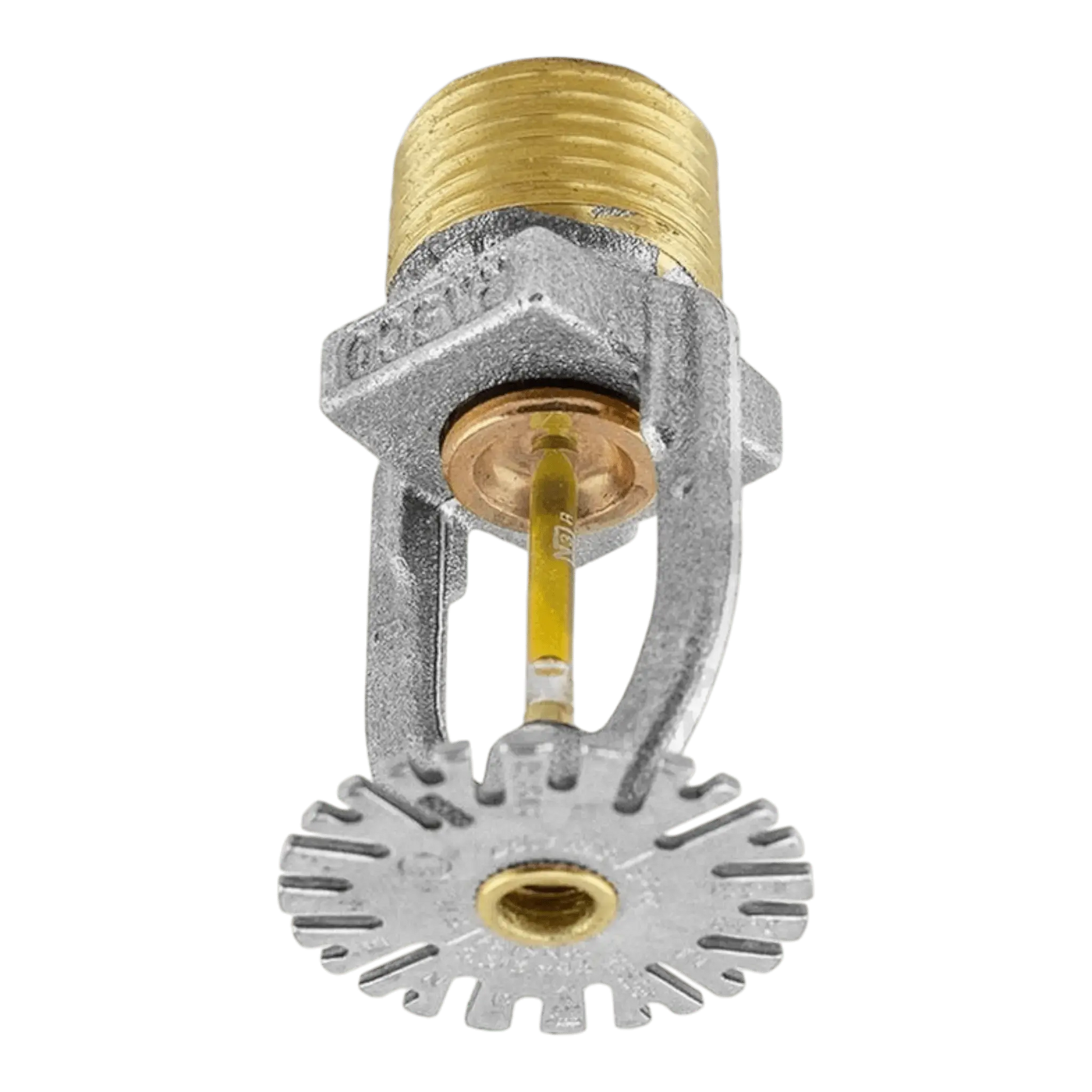

The Reliable F1Res58, SIN R3513, is a K5.8 fast-response residential pendent sprinkler for wet pipe systems. Its 3 mm glass-bulb operating element and listed distribution pattern are intended for residential occupancies or residential portions of other occupancies, subject to the manufacturer design criteria.

Key Features & Construction

  • Temperature options: 155°F (68°C) or 175°F (79°C), as selected. The value 84 is the metric K-factor, not a temperature rating.
  • Construction: Brass-alloy frame, bronze-alloy deflector and load screw, copper-alloy button, and nickel-alloy/PTFE sealing assembly.
  • Finish selection: Bronze, chrome, or white polyester according to the exact ordering code. Code 58P5B identifies the 175°F bronze version.
  • Recessed arrangements: Use only the specifically listed Reliable escutcheon combination and the installation dimensions in Bulletin 135.

Technical Specifications & Compliance

Specification Detail
Manufacturer / Model / SIN Reliable / F1Res58 pendent / R3513
Connection 1/2-inch NPT for the verified ordering codes
K-Factor 5.8 U.S. (84 metric)
Maximum Working Pressure 175 psi (12 bar)
Response / Thermal Element Fast-response residential / 3 mm glass bulb
Temperature Ratings 155°F (68°C) and 175°F (79°C)
System Application Wet pipe residential sprinkler systems only, within the listed application limits.
Listed Coverage Up to 20 × 20 feet, subject to the flow, residual pressure, deflector position, and design requirements in Bulletin 135, Table D.
Listing cULus Listed residential sprinkler under the manufacturer configuration requirements.
Installation Wrenches Model W2 for non-recessed pendent installation; Model W1 for recessed installation.
Applicable NFPA Requirements NFPA 13, 13R, or 13D as applicable to the residential installation; NFPA 25 inspection, testing, and maintenance. NFPA 13 requires the additional minimum design-density calculation.

Submittal & Installation Note

Verify the exact part number, temperature, finish, listed escutcheon, hydraulic design, and deflector-to-ceiling distance with current manufacturer technical data and the local Authority Having Jurisdiction (AHJ). Do not select this residential sprinkler solely from a commercial occupancy or hazard label. Follow the designated wrench and torque requirements, remove the bulb protector when placing the system in service, and do not field-paint or reuse operated sprinklers.

Documentation: Reliable Bulletin 135, F1Res Series, March 2025 (PDF); Reliable product catalog and list price book
