Simplex 4906-9103 Wall Strobe - White
Simplex 4906-9103 Wall Strobe - White
Product code: FA-608-2
Couldn't load pickup availability
Fast Shipping To USA & Canada
100% Satisfaction Guaranteed
365-Day Warranty
Description

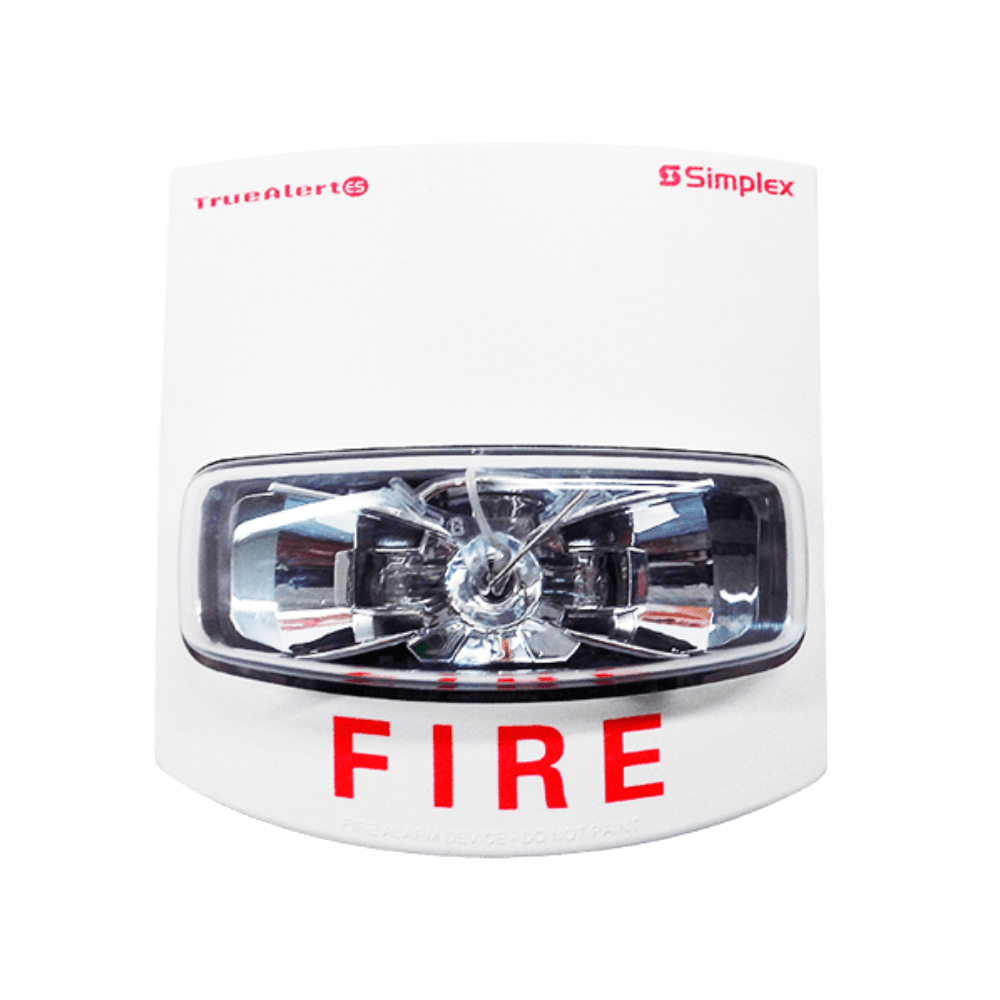

Simplex 4906-9103 provides convenient installation to standard electrical boxes. The enclosure designs are both impact and vandal resistant and provide a convenient strobe intensity selection. Besides, Simplex 4906-9103 wall mounts strobe housings are a one-piece assembly (including lens) that mounts to a single or double gang, or 4″ square standard electrical box.
During installation, a selection plug at the back of the housing determines the desired strobe intensity. Also, An attached flag with black letters on a highly visible yellow background allows the selected intensity to be seen at the side of the strobe lens.
Multiple Strobes: When multiple strobes and their reflections can be seen from one location, synchronized flashes reduce the probability of photo-sensitive reactions as well as the annoyance and possible distraction of random flashing. These multi-candela strobes come synchronized over a two-wire circuit when connected to compatible NACs, to compatible Synchronized Flash Modules, or to SmartSync Control Modules.
Features / Specifications
- Intensity is selectable as 15, 30, 75, or 110 candela with visible selection jumper secured behind strobe housing
- Operation is compatible with ADA requirements
- Polarized input allows connection to compatible reverse polarity, supervised notification appliance circuit (NAC)
- Regulated circuit design ensures consistent flash output together with provides controlled inrush current
- Rugged, high impact, flame retardant thermoplastic housings are available in red or white with a clear lens
- Simplex fire alarm control panels with NACs selected to provide strobe synchronization or SmartSync two-wire control
- Wall mount strobes easily mount to the single gang, double gang, or 4-inch square outlet box
- Wiring terminals are accessible from the front of the housing providing easy access for installation, inspection, as well as testing
- Wall mount strobe adapters are available to cover surface-mounted
electrical boxes and to adapt to 2975-9145 boxes - Covers are available separately to convert housing color
- • Listed to UL 1971 and ULC S526
- Temperature Range: 32° to 122° F (0° to 50° C)
- Humidity Range: 10% to 93%, non-condensing at 100° F (38° C)
