Double Check Versus RPZ for Fire Systems

A backflow preventer is not a place to make a casual substitution. In the double check versus RPZ decision, the right assembly depends on the degree of hazard, the water authority’s requirements, system conditions, and the specific fire protection application. Both assemblies prevent contaminated water from moving back into the potable supply, but they provide different levels of protection and create different installation demands.

For contractors, facilities teams, and specifiers, the practical question is not which device is “better” in every case. It is which approved assembly meets the project’s hazard classification, delivers the required fire flow, and can be tested and maintained without creating costly site problems.

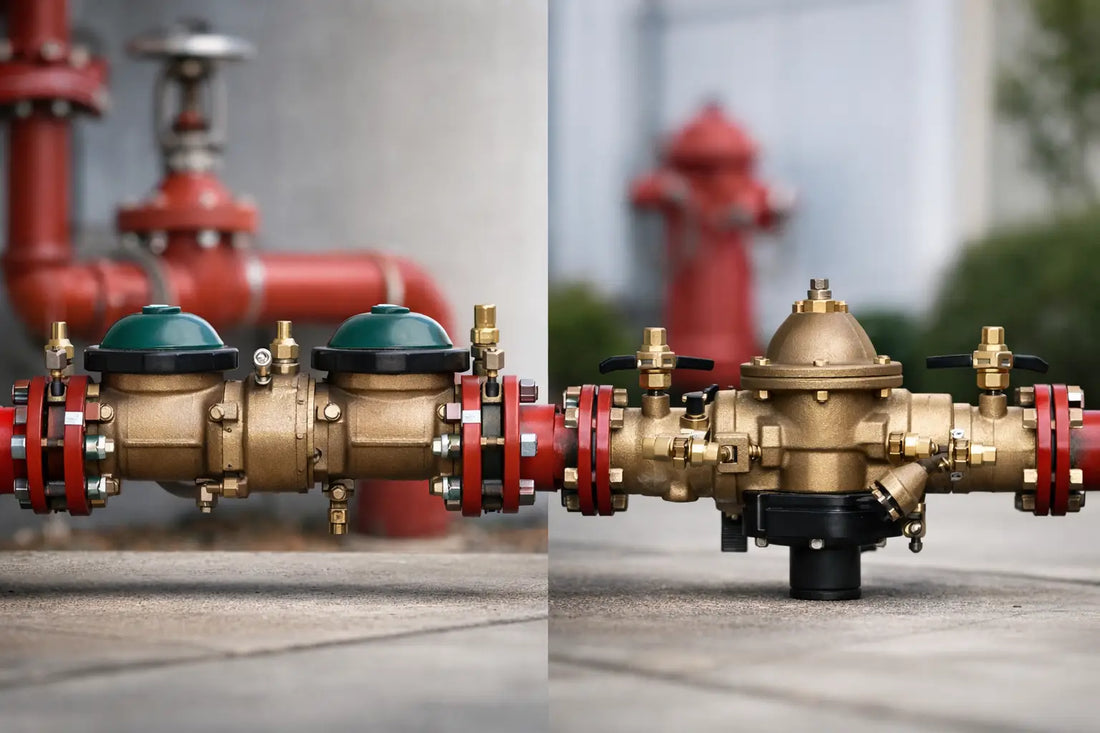

Double Check Versus RPZ: The Core Difference

A double check valve assembly, commonly called a DCVA or double check, uses two independently acting check valves in series. If one check valve does not seal completely, the second valve provides another barrier against reverse flow. Shutoff valves and test cocks allow a certified tester to verify performance in the field.

A reduced pressure zone assembly, often called an RPZ, RP, or reduced pressure principle assembly, also has two check valves. Its key difference is the hydraulically operated relief valve located between those checks. The relief valve maintains a reduced-pressure zone and discharges water if pressure conditions indicate that either check may not be providing adequate protection.

That relief feature makes an RPZ suitable for higher-hazard cross-connections. It also means an RPZ needs a safe, properly sized discharge path. Under normal operating conditions, thermal expansion, pressure fluctuations, or a fouled check can cause an RPZ to release water. Installing one in a finished room, above sensitive equipment, or without adequate drainage can turn a code-compliant decision into an operational headache.

When a Double Check Assembly Is Appropriate

A double check assembly is generally used where the downstream condition is considered a low hazard or non-health hazard. It protects against backsiphonage and backpressure, provided the assembly is installed, tested, and maintained according to its listing and local requirements.

For fire protection work, a double check assembly may be permitted on certain sprinkler or standpipe connections where the fire system does not introduce substances or conditions classified as a health hazard. That determination is not based on convenience, price, or what was used on the last project. It is based on the applicable plumbing code, water purveyor policy, fire protection design, and authority having jurisdiction.

Double check assemblies are often attractive because they do not have a relief valve that must discharge to a drain. They can simplify installation where drainage is limited, and they may have lower ongoing water-discharge concerns. However, they are not a substitute for an RPZ when the connection is classified as high hazard.

When an RPZ Is the Better Choice

An RPZ is commonly required where there is a potential health hazard to the potable water supply. In fire protection systems, that can include systems containing antifreeze solutions, foam concentrate, corrosion-inhibiting chemicals, or other additives. Certain process-connected fire protection arrangements and systems exposed to contaminants may also require this higher level of protection.

The RPZ provides greater protection because the relief valve opens before a potentially contaminated condition can be forced back toward the supply. That added protection comes with trade-offs: more installation planning, a need for drainage, and attention to relief-valve discharge. It may also cost more than a comparable double check assembly.

Do not assume that an RPZ is automatically required simply because a line serves a fire sprinkler system. Likewise, do not assume a double check is sufficient because the system uses plain water. Hazard classification can vary by jurisdiction, water supplier rules, system configuration, and whether the fire line has any chemicals, auxiliary connections, or special-use components.

How Fire Protection Applications Affect Selection

Fire protection backflow selection begins with a clear view of what is downstream of the assembly. A wet-pipe sprinkler system supplied only with potable water may be treated differently from a foam-water system, an antifreeze loop, or a system with a chemical treatment program. The water authority and AHJ may also have requirements that go beyond the base plumbing code.

For dedicated fire lines, the project may call for a detector assembly rather than a standard domestic-water backflow assembly. A double check detector assembly, or DCDA, incorporates a bypass meter arrangement to identify unauthorized or low-volume water use. A reduced pressure detector assembly, or RPDA, provides the same detector function with reduced-pressure protection for applications classified as higher hazard.

These distinctions matter during replacement work. Replacing a failed assembly with a similar-looking product without verifying the required type can delay inspections, fail acceptance testing, or create a compliance issue for the building owner. Confirm the assembly designation, size, end connection, orientation, pressure rating, and required approvals before ordering.

Fire protection components should also be selected with their listed use in mind. Depending on the application, the design may require assemblies with appropriate approvals for fire service, including UL listing or FM approval where specified. A domestic backflow preventer is not automatically acceptable for a fire protection installation.

Code, Water Authority, and AHJ Requirements

The water purveyor typically has significant authority over backflow protection at the service connection. The local plumbing code establishes baseline requirements, while fire codes, NFPA standards, project specifications, and the AHJ can add application-specific requirements.

That is why the correct workflow is to verify the hazard classification before finalizing the assembly. Review the fire protection plans, identify additives or connected processes, confirm the water supplier’s containment requirements, and check the approved submittal documents. If the project involves a retrofit, compare the existing assembly with current requirements rather than assuming the original installation remains acceptable.

Pressure loss also deserves attention. Every backflow assembly creates friction loss, and that loss must be accounted for in the hydraulic design. An undersized assembly or a model with unsuitable flow characteristics can affect available pressure to sprinkler risers, hose connections, or fire pump supply arrangements. Selection should be based on the required flow demand and manufacturer flow data, not simply the nominal pipe size.

Installation and Maintenance Considerations

A double check or RPZ can only protect the system if it remains accessible for testing, repair, and inspection. Plan for adequate clearance around shutoff valves, test cocks, covers, and check modules. Protect the assembly from freezing, physical damage, and unauthorized tampering.

For an RPZ, relief-valve discharge is the major planning item. Provide drainage that can safely handle discharge without flooding the room or damaging adjacent equipment. Follow the manufacturer’s installation instructions and local code requirements for air gaps, drainage routing, and discharge termination. Never pipe the relief outlet in a way that creates backpressure or conceals a discharge event.

Both assembly types require field testing at installation and periodic testing thereafter where required by the jurisdiction. Annual test requirements are common, but local rules control. Testing is not merely paperwork: it verifies that check valves, shutoffs, and relief components are operating at the required differential pressures.

When an assembly fails a test, use approved repair parts matched to the manufacturer and model. Improvised components and low-quality substitutes can compromise performance, approvals, and warranty coverage. For critical fire protection work, recognized brands and correctly matched replacement kits help keep repairs defensible and serviceable.

Specify the Assembly Before It Becomes a Delay

The fastest path to the right backflow preventer is to provide complete project information before purchasing. Include the required assembly type, size, desired end connections, orientation, pressure class, expected flow, required approvals, and whether the device serves domestic water, a dedicated fire line, or a detector assembly application.

If the requirement is unclear, resolve it with the engineer of record, water authority, and AHJ before material is released. Fire Protection Parts can help contractors source dependable, code-conscious assemblies and replacement components, but final acceptance always rests on the approved design and local authority requirements.

A properly selected backflow assembly protects more than the water supply. It protects the project schedule, the inspection outcome, and the building owner’s confidence that a life safety system was built with the right components from the start.
