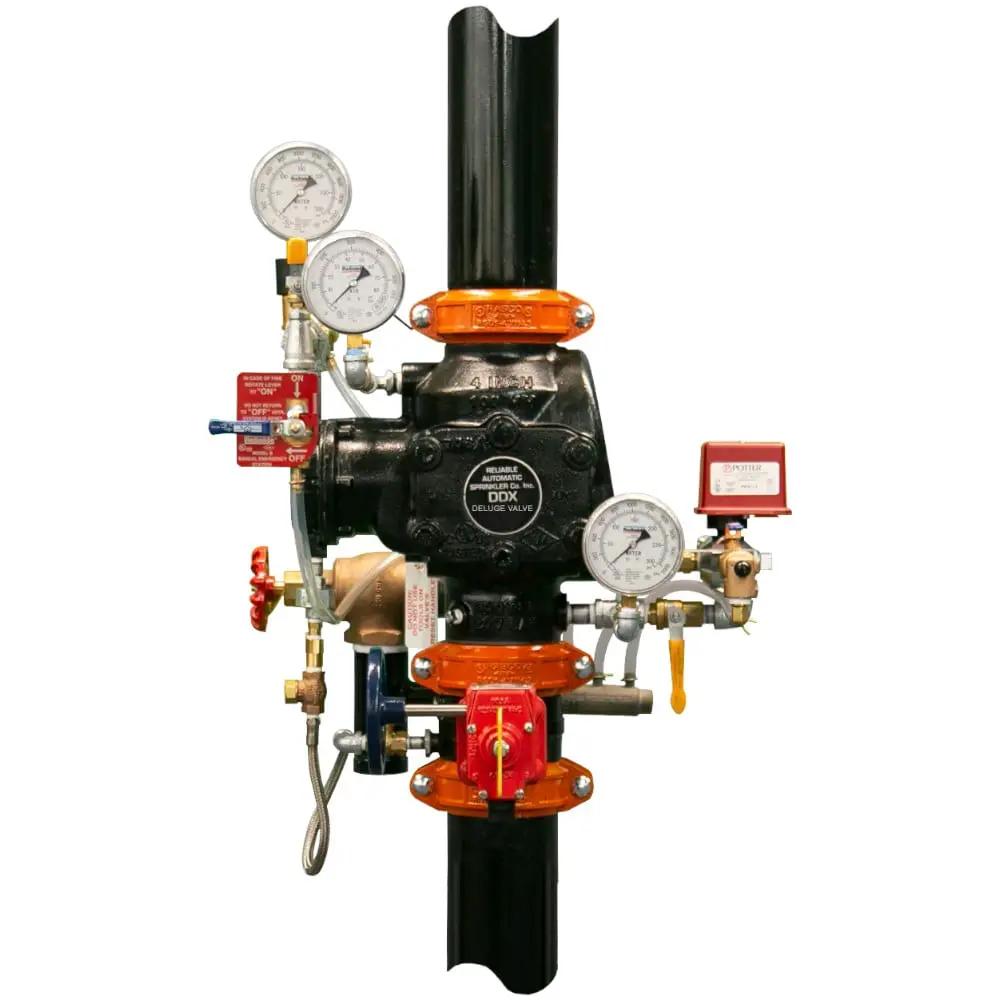

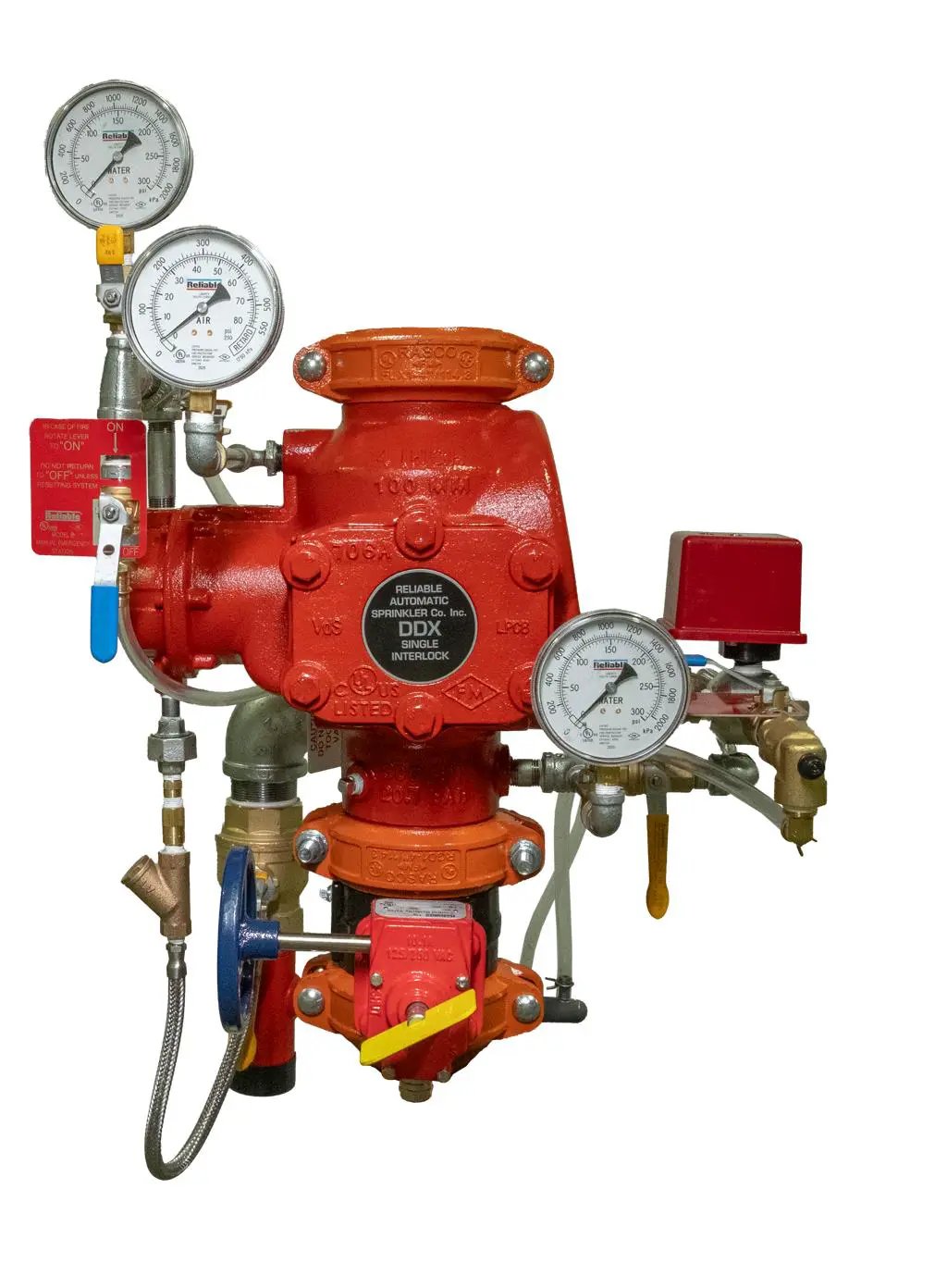

Reliable Model DDX Deluge Valve with Wet Pilot Line Trim for Critical Fire Protection
The Reliable Model DDX Deluge Valve with Wet Pilot Line Trim is a robust, hydraulically operated control valve engineered for critical fire suppression in high-hazard environments. This system provides rapid, simultaneous water discharge across a protected area, making it ideal for facilities where immediate fire control is paramount. It ensures dependable operation by utilizing a pressurized wet pilot line for accurate and responsive fire detection.
-
Hydraulic Operation: Functions as a differential-type, latching clapper valve that swiftly releases water into the system upon activation, ensuring full-area coverage.
-
Wet Pilot Line Activation: Designed for release by wet pilot sprinklers or hydraulic manual emergency pull stations, which vent pressure from the pilot line to trip the main deluge valve. This system uses water-filled pilot piping for detection.
-
Robust Construction: Features a differential-type, lightweight, yet highly dependable construction, ensuring long-term performance in demanding industrial settings.
-
Corrosion-Resistant Components: Equipped with a bronze seat and O-ring seals, along with a pressure-actuated clapper facing, to resist corrosion and leakage for a dependable, lasting seal.
-
External Reset Capability: Easily reset externally without the need to remove the cover plate, streamlining post-activation procedures and maintenance.
-
High-Pressure Rating: Rated for working pressures up to 250 psi (17.2 bar) for various sizes, with larger 4", 6", and 165mm valves rated for 300 psi (20.7 bar), suitable for a wide range of water supply demands.
-
Grooved Connections: Features grooved inlet and outlet connections for straightforward installation and integration into existing piping networks.
-
Certified Compliance: UL Listed and FM Approved when used with Reliable's specified trim sets, ensuring adherence to stringent safety and performance standards.
Choosing the Reliable Model DDX Deluge Valve with Wet Pilot Line Trim means investing in immediate, full-flow fire suppression for your most critical assets. Its hydraulically actuated wet pilot system offers rapid response times, crucial for preventing the escalation of fires in environments like oil and gas facilities, aircraft hangars, or chemical plants where flammable materials are present. The robust design with corrosion-resistant materials ensures long-term reliability and reduced maintenance cycles, while the external reset feature simplifies system testing and return to service. This system provides peace of mind through a proven, dependable fire protection solution that functions effectively even without electrical power.
