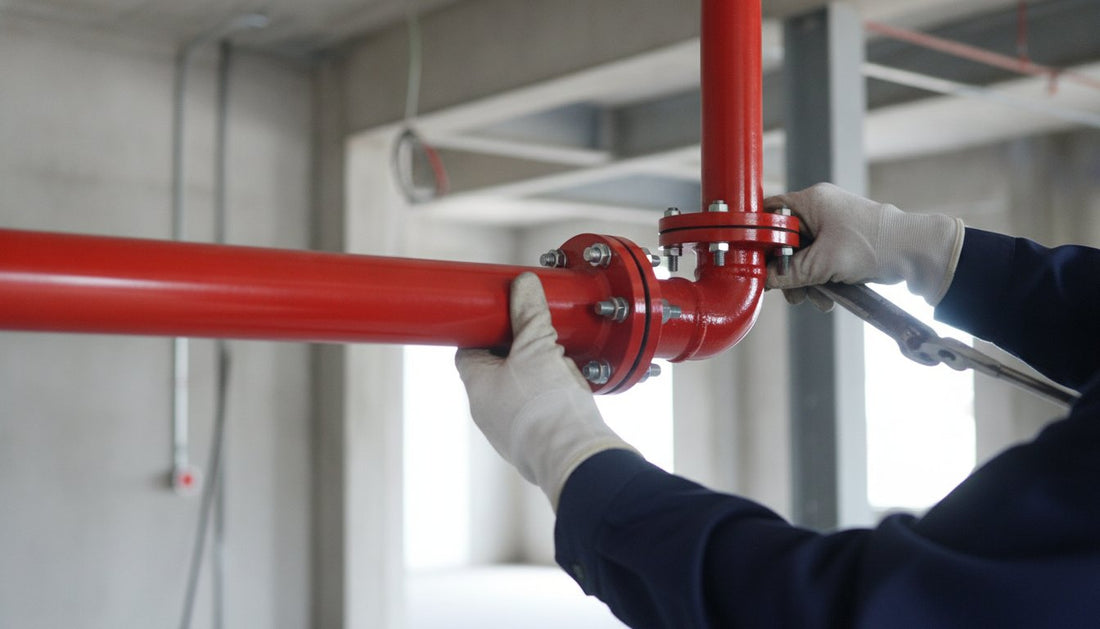

Fire Sprinkler Pipe Fittings: The 2026 Professional Buying Guide

Did you know that grooved pipe connections can slash your installation labor costs by 30% to 50% compared to traditional welding? Selecting the right fire sprinkler pipe fittings is a high-stakes decision where there's no room for guesswork. You've likely felt the pressure of choosing between ductile, malleable, or cast iron while trying to navigate the 2026 updates to NFPA 13 and NFPA 25. A single mistake in material selection doesn't just cause leaks; it risks non-compliance and system failure when it matters most.

We understand that finding high-pressure rated components that satisfy both your budget and strict safety codes is a constant challenge. This guide will help you master technical specifications and selection criteria to ensure a code-compliant, leak-free suppression system. We'll examine the critical performance differences between iron and CPVC, explain the latest component traceability standards, and provide a clear roadmap for sourcing reliable components for any wet or dry system.

Understanding Fire Sprinkler Pipe Fittings and System Integrity

Fire sprinkler pipe fittings are the critical joints that maintain the hydraulic pressure of a life-safety network. They aren't merely connectors. These components serve as the backbone of a system, ensuring that water reaches its destination at the exact velocity and volume required by your hydraulic calculations. In any Fire sprinkler system, the fittings must endure extreme conditions while remaining completely static for years, only to perform flawlessly during a high-pressure discharge. A single failure at a joint doesn't just cause water damage; it compromises the entire suppression capability of the building.

Navigating modern building architecture requires a complex web of piping. You'll often find yourself working around HVAC ductwork, structural steel, and electrical trays. High-quality fire sprinkler pipe fittings allow you to route pipe through these tight spaces without creating excessive friction or turbulence. Every 90-degree turn or tee junction adds resistance to the flow. Professional-grade fittings are engineered with smooth internal waterways to minimize this "friction loss," ensuring your system meets the required density at the most remote sprinkler head.

When coordinating these installations alongside electrical infrastructure, safety and organization are paramount; to explore personalized, high-visibility power solutions for your job site, visit Fourman Industries.

Don't mistake standard plumbing fittings for fire-rated components. While they may look similar, the performance gap is vast. Residential plumbing typically operates at 60 to 80 PSI. Fire systems must withstand a minimum of 175 PSI, with many high-rise or industrial systems requiring ratings of 300 PSI or more. This is why UL Listing and FM Approval are mandatory. These certifications provide peace of mind for contractors and are a strict requirement for insurance compliance. If a fitting isn't verified for fire service, it doesn't belong in your system.

For specialized industrial applications requiring high-performance polymer tubing or chemical-resistant hoses, working with an ISO 9001:2015 certified manufacturer like Advanced Fluro Private Limited ensures that your auxiliary components meet the same rigorous quality standards as your primary fire-rated hardware.

The Mechanics of a Leak-Free Connection

Choosing between threaded and grooved connections often depends on the system's scale and environmental stressors. Threaded fittings are traditional and reliable for smaller branch lines, but they offer less flexibility. Grooved connections excel in larger systems because they naturally handle thermal expansion and contraction. This flexibility is vital in buildings that settle or experience temperature swings. It's also your primary defense against hydraulic shock. When a pump kicks in or a valve closes suddenly, a massive pressure wave travels through the pipe. Robust fittings absorb this energy, preventing the joints from shearing or leaking under the sudden load.

Fittings in the Context of NFPA Standards

Adherence to NFPA standards is the baseline for professional installation. Whether you're following NFPA 13 for commercial builds, 13D for one-and-two-family dwellings, or 13R for residential occupancies up to four stories, the requirements for fittings remain stringent. Code-compliant components are non-negotiable because they've been tested for long-term corrosion resistance and material strength. Selecting the right parts is just one step in the procurement process. For a deeper look at how these pieces fit into your overall strategy, you can find more information on sourcing sprinkler system components online to ensure every part of your project meets the 2026 safety mandates.

Material Comparison: Iron vs. CPVC Fire Protection Fittings

The choice of material for your fire sprinkler pipe fittings determines more than just the initial price. It dictates the system's hydraulic efficiency and its ability to withstand decades of dormancy. While ductile iron, malleable iron, and CPVC are the industry standards, each serves a distinct role based on building type and pressure requirements. Selecting the wrong material can lead to premature failure, especially in environments where corrosion or high mechanical stress is present.

Ductile Iron vs. Malleable Iron: What is the Difference?

The technical distinction between these two metals lies in their carbon structure. Ductile iron features spheroidal graphite, which grants it superior tensile strength and impact resistance. Malleable iron undergoes an extensive annealing process to transform brittle white iron into a more workable, heat-treated material. For high-pressure industrial environments, ductile iron is the reliable choice. It handles the stresses of systems rated for 300 PSI without the risk of fracture that plagues more brittle metals.

When you are designing branch lines, the application guide for fittings changes. Malleable iron is frequently used for smaller, threaded connections in standard wet systems. However, when using reducing tees to transition between large main lines and smaller branch lines, ductile iron provides the structural integrity needed to manage the weight and vibration of the system. This ensures the joints remain secure even during the intense hydraulic surge of a system activation.

The Rise of Viking Plastics CPVC in Fire Suppression

In the residential sector, metal isn't always the most efficient answer. Viking CPVC fire sprinkler pipe and fittings have revolutionized NFPA 13D installations. The primary advantage of this material is the total elimination of Microbiologically Influenced Corrosion (MIC). Unlike iron, CPVC does not scale or pit over time. This keeps the internal diameter smooth and ensures that your hydraulic calculations remain accurate for the life of the building.

Installation speed also shifts the cost-to-longevity equation. Solvent cement welding is significantly faster than traditional threading or grooving. It creates a chemical bond that is often stronger than the pipe itself, reducing the risk of leaks at the joints. If you are working within NFPA 13 installation standards for light hazard or residential settings, CPVC offers a superior cost-to-longevity ratio by slashing labor time and maintenance needs.

Corrosion resistance is where ductile iron truly separates itself from standard cast iron. Standard cast iron is brittle and prone to internal rusting that can eventually clog sprinkler heads. Ductile iron's metallurgical properties make it far more resilient against the harsh conditions of a dry pipe system. While iron fire sprinkler pipe fittings may require a higher upfront investment than plastic, their physical strength is necessary for commercial systems where external damage or extreme temperatures are a constant threat. If you need to verify the right material for your next project, you can browse our inventory of 112+ specialized fittings to find the exact match for your system requirements.

Essential Fitting Types and Their Strategic Uses

Strategic placement of fire sprinkler pipe fittings transforms a collection of rigid tubes into a responsive, functional suppression network. Every bend and junction in your system must be calculated to handle specific hydraulic loads. While the materials discussed in previous sections provide the strength, the geometry of the fittings determines how effectively water reaches the hazard area. Choosing the right configuration reduces the number of leak points and optimizes the pressure delivered to each head.

Elbows, available in 90 and 45-degree angles, are your primary tools for navigating building corners and structural beams. Maintaining pressure through these turns is vital. 45-degree elbows are often preferred in high-flow areas to reduce turbulence and friction loss. Tees and reducing tees serve as distribution hubs, splitting the main flow into branch lines. Using a reducing tee is often more efficient than combining a standard tee with a separate reducer, as it minimizes the total number of joints in the system.

Couplings and unions facilitate the connection of long pipe runs and provide essential access points for future maintenance. While couplings create a permanent bond, unions allow you to disconnect sections of pipe near critical equipment like pumps or backflow preventers without cutting the line. Caps and bushings round out the essential inventory, allowing you to terminate lines securely or adapt between different pipe diameters as the system branches out toward individual rooms.

Branch Line Connections and Sprinkler Head Integration

Integrating different types of fire sprinkler heads requires precision at the terminal fitting. The sprinkler head adapter is the most critical component here, designed to provide a perfect, high-pressure seal for the head's threads. Your choice of fitting changes based on the layout. Recessed or concealed heads often require specific drop nipples and specialized tees to ensure the head sits flush with the ceiling, while pendent heads in open-ceiling warehouses may use standard threaded tees.

Adapters and Specialized Connectors

Transitioning from a heavy metal riser to a CPVC branch line is a common challenge in modern builds. You must use specialized transition adapters that account for the different thermal expansion rates of iron and plastic. In commercial riser rooms, groove-to-thread adapters allow you to move from large, grooved main lines to threaded control valves or smaller distribution pipes with ease. These specialized fire sprinkler pipe fittings are also essential when installing seismic bracing for sprinkler systems. Seismic-rated connectors provide the necessary flexibility to prevent pipe rupture during building movement, ensuring the system remains operational even after a significant event.

Professional Installation Best Practices for Leak-Free Joints

A leak-free fire sprinkler pipe fittings installation begins long before the wrench touches the pipe. Methodical preparation is the only way to ensure system integrity under high-pressure conditions. It isn't enough to simply tighten a joint. You must ensure every thread is clean and free of metal burrs. Dirt or metal shavings trapped in the threads create micro-gaps that high-pressure water will eventually exploit, leading to slow drips or catastrophic failures during a surge. Before assembly, verify that threads are cut to the correct depth. Shallow threads won't seat properly, while overly deep threads weaken the pipe wall and invite leaks.

Sealant selection is your next line of defense. Use Teflon tape or high-quality pipe dope on iron threads to lubricate the connection and fill microscopic voids. For most professional applications, a non-hardening pipe dope is superior. It doesn't shred or clog small orifices like sprinkler head nozzles. Follow the "Hand-Tight Plus" rule to protect your components. Many installers make the mistake of over-torqueing iron fittings, which creates internal stress and leads to hairline cracks. Tighten the fitting by hand until it seats, then use a wrench for only one to two additional turns. Always perform a visual inspection before charging the system. Look for hairline cracks in cast iron components, which can be difficult to see but will fail immediately under a 200 PSI hydrostatic test.

Installing CPVC Fittings with Solvent Cement

Viking Plastics CPVC requires a chemical bond rather than a mechanical one. The choice between a one-step and two-step cement process often depends on local codes and the pipe diameter. A two-step process using a primer ensures the surface is softened for a deeper weld. Cure times are non-negotiable for safety. At 60 degrees Fahrenheit, a 1-inch pipe might need 15 minutes to set, but larger diameters in colder weather can take hours. Don't rush the pressure test. Over-applying cement is a common mistake that can pool inside the fitting, creating a blockage that restricts water flow during an emergency.

Maintaining Iron Fittings in Wet and Dry Systems

Maintenance keeps the system viable after the initial installation. In wet systems, oxygen trapped in the water causes localized pitting. Monitor your fire sprinkler pipe fittings for external signs of rust, which often indicates internal thinning. Dry systems face higher risks at the air-water interface. Condensation can collect at low points, leading to "fitting rot" where the metal is most vulnerable. Regular draining of low-point drains is essential to prevent this. If you discover compromised components during an inspection, you can find high-quality fire protection parts online to perform immediate, code-compliant repairs.

Secure your next project with components that meet the highest industry standards by exploring our full range of fire sprinkler pipe fittings.

Sourcing Quality Fire Sprinkler Fittings at Fire Protection Parts

Sourcing the right fire sprinkler pipe fittings shouldn't be a gamble. When a system is down or a project is on a tight deadline, you need a partner who understands the technical nuances of NFPA compliance. Fire Protection Parts maintains a massive collection of 112+ specialized fittings, ensuring you have access to the exact components required for both modern installs and legacy repairs. We don't just provide parts; we provide the professional assurance that your system will hold under pressure. Every component in our inventory is selected for its ability to perform in the high-stakes environment of fire suppression.

Our inventory includes a comprehensive range of ductile, cast, and malleable iron, alongside authorized Viking Plastics CPVC components. This diversity allows us to serve as a one-stop shop for everything from high-pressure industrial riser rooms to delicate residential NFPA 13D systems. We prioritize quality by sourcing from industry leaders, ensuring that every fitting meets the rigorous standards for UL Listing and FM Approval discussed earlier in this guide. By eliminating the need to source from multiple vendors, we help you maintain consistency across your entire project.

Legacy systems often present the biggest sourcing headaches. Finding a specific malleable iron fitting that matches a 30-year-old configuration can stall a repair for days. Our team provides expert support to help contractors identify and source these difficult matches. We understand that in the fire protection industry, downtime is a safety risk. Our fast fulfillment process is designed to minimize that window, getting your suppression system back online without unnecessary delay. We focus on getting the right part to your job site the first time, every time.

Standout Products from Our Fittings Collection

Our curated selection focuses on high-performance materials that handle extreme hydraulic stress. Ductile Iron Reducing Tees are a top choice for industrial branch lines, offering the tensile strength needed to manage high-flow transitions. For residential projects, Viking Plastics CPVC Elbows remain the gold standard. They provide the chemical resistance necessary to eliminate corrosion risks in wet systems. When it comes to terminating lines or adapting diameters, our malleable iron caps and bushings offer the versatility required for a perfect, code-compliant seal. These components are engineered for longevity and ease of installation.

Ready to Secure Your System?

Your choice of fittings is the final barrier against system failure. Before making a purchase, always verify your specific local code requirements and pressure ratings. Making the right choice now prevents the costly leaks and compliance issues that plague substandard installations. We're committed to helping you build a system that stands the test of time and protects what matters most. Don't compromise on safety when professional-grade solutions are readily available.

Browse our full selection of Fire Sprinkler Pipe Fittings here to find the professional-grade components you need for a secure, leak-free installation.

Securing System Reliability for the Long Term

Mastering the technical specifications of your suppression system is the difference between a reliable safeguard and a costly liability. We've explored how material compatibility, from ductile iron's strength to the corrosion resistance of CPVC, dictates the longevity of your network. By following the "Hand-Tight Plus" rule and selecting components engineered for high-pressure environments, you eliminate the guesswork that leads to leaks and code violations.

Ensuring your fire sprinkler pipe fittings meet NFPA 13, 13D, or 13R standards is the only way to guarantee performance during a fire event. As an authorized Viking Plastics retailer with over 112 specialized fittings in stock, we provide the verified components you need for any industrial or residential application. Don't leave your project's safety to chance when professional-grade solutions are just a click away.

Shop our professional-grade Fire Sprinkler Pipe Fittings collection

Your commitment to quality installation protects lives and property. We're here to ensure you have the expert support and high-performance hardware to get the job done right.

Frequently Asked Questions

What is the difference between ductile iron and malleable iron fittings?

Ductile iron features spheroidal graphite, which provides superior tensile strength and impact resistance for high-pressure industrial systems. Malleable iron is annealed to be more workable and is typically used for smaller threaded connections in standard wet systems. While both are common in fire sprinkler pipe fittings, ductile iron is the preferred choice for environments where mechanical stress or higher PSI ratings are present.

Can I use standard PVC fittings for a fire sprinkler system?

No, you must never use standard plumbing PVC for fire suppression. Standard PVC lacks the heat resistance and pressure ratings required to maintain integrity during a fire event. Only specially engineered CPVC, such as Viking Plastics CPVC, is rated and listed for fire protection service. Using non-rated plastic fittings is a violation of NFPA codes and creates a significant risk of system failure.

How do I know if a fire sprinkler fitting is UL Listed or FM Approved?

You can identify certified components by looking for the "UL" or "FM" logo stamped directly onto the body of the fitting. Manufacturers also provide technical data sheets and certificates of compliance that verify these ratings. Using listed components is a mandatory requirement for insurance compliance and ensures the part has been tested for the extreme conditions of fire service.

What is the best sealant to use for threaded iron fire pipe fittings?

A high-quality, non-hardening pipe dope is generally the best choice for professional iron installations. It provides excellent lubrication for a tight seal without the risk of shredding and clogging sprinkler head orifices, which can happen with poorly applied Teflon tape. For the most secure connection, many contractors apply a thin layer of pipe dope over two or three wraps of tape.

Are Viking CPVC fittings compatible with other brands of CPVC pipe?

Viking CPVC fittings are generally compatible with other brands of CPVC pipe, provided the pipe is also specifically rated for fire protection. However, you must verify the chemical compatibility of the solvent cement you intend to use. It's always safest to consult the manufacturer's compatibility list to ensure that different brands won't suffer from chemical degradation when joined together.

What happens if I over-tighten a fire sprinkler fitting?

Over-tightening creates excessive internal stress that leads to hairline cracks or stripped threads. These fractures might not be visible during installation but can fail catastrophically when the system is charged or during a hydraulic surge. Following the "Hand-Tight Plus" rule helps you avoid these structural failures and ensures the fire sprinkler pipe fittings remain leak-free for the life of the system.

Do I need special fittings for a dry pipe sprinkler system?

Dry pipe systems often require galvanized iron or ductile iron fittings to combat the increased risk of corrosion at the air-water interface. Because these systems contain compressed air until activated, any moisture trapped in the lines can lead to rapid "fitting rot." You must also use specific configurations like low-point drains to ensure that all condensation can be removed from the system during routine maintenance.

How often should fire sprinkler pipe fittings be inspected for corrosion?

NFPA 25 mandates a visual inspection of all accessible piping and fittings from the floor level annually. You are looking for signs of external corrosion, leaks, or physical damage. Additionally, an internal pipe inspection is required every five years to check for Microbiologically Influenced Corrosion (MIC) or significant scale buildup that could obstruct water flow during an emergency.
