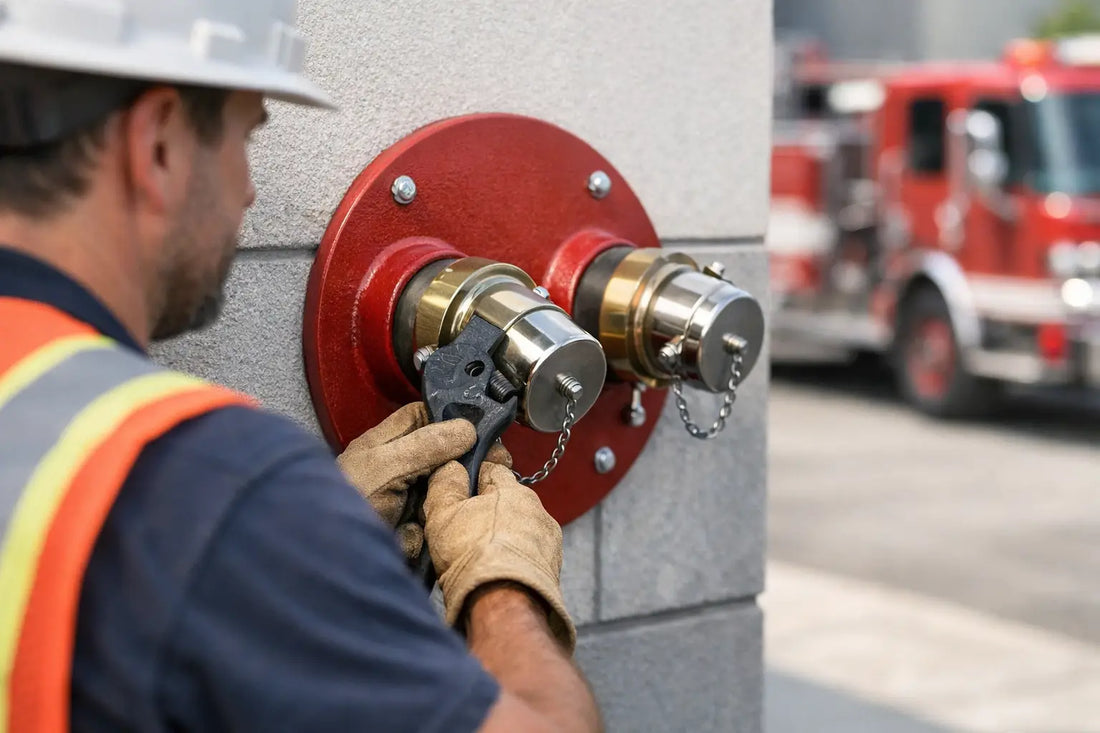

How to Install Fire Department Connection Safely

A fire department connection is only useful if responding crews can find it immediately, connect without interference, and deliver water to the system as designed. That is why knowing how to install fire department connection equipment is not simply a piping task. It is a coordinated code, hydraulic, accessibility, and inspection requirement that should be completed by qualified fire protection professionals.

An improperly located, mismatched, obstructed, or unprotected FDC can delay fire department operations when minutes matter. Before materials are ordered or pipe is installed, confirm the approved plans, local amendments, and authority having jurisdiction (AHJ) requirements for the specific building and fire protection system.

Start With the Approved System Design

The FDC must match the system it serves. A connection supplying an automatic sprinkler system may have different piping, check valve, and identification requirements than one serving a standpipe system or a combined sprinkler/standpipe system. The applicable NFPA standard may include NFPA 13, NFPA 14, NFPA 24, or another adopted standard, but the local AHJ and approved construction documents control the installation.

Review the hydraulic calculations and riser details before field work begins. Confirm the required fire department inlet size, number of inlets, thread type, connection orientation, and pressure requirements. Do not assume a standard two-way 2-1/2-inch brass connection is acceptable everywhere. Fire departments may require specific swivel sizes, National Standard Thread, local fire hose thread, Storz connections, caps, plugs, or locking hardware.

The FDC also needs to be identified correctly. A combined system connection, for example, must clearly communicate what it supplies. The fire department should not have to determine whether the inlet serves sprinklers, standpipes, or both after arriving at an emergency scene.

Choose the Right FDC Type and Components

Most installations use either a wall-mounted or freestanding fire department connection. The right choice depends on the building construction, site layout, visibility, piping route, vehicle exposure, and AHJ direction.

A wall-mounted FDC is often practical where an exterior wall provides a clear and accessible connection point. It can reduce exposed underground piping and place the inlets near the system riser. However, it must not be recessed or positioned where landscaping, parked vehicles, gates, dumpsters, or future site changes can block access.

A freestanding FDC is commonly used when the system piping is routed underground or the building wall is not a suitable location. A yard-type connection needs durable support, weather-resistant materials, adequate drainage, and protection from vehicle impact. In many commercial sites, bollards may be necessary, but their placement must still leave enough room for hose connection and fire department operations.

Select listed and compatible components throughout the assembly. This generally includes the FDC body, inlet swivels, caps or plugs with chains, check valve arrangement, drain or ball drip where required, pipe and fittings, signage, and protective hardware. No cheap substitutes should be used in a life safety water supply path. Material compatibility matters, especially where brass, galvanized steel, ductile iron, CPVC, or other system materials meet.

How to Install Fire Department Connection Equipment

Installation begins with layout, not pipe assembly. Mark the approved location and verify that it is visible and accessible from the fire apparatus approach. The exact mounting height and clearance requirements vary by code edition and local jurisdiction, so use the approved plans and AHJ guidance rather than relying on a generic dimension from another project.

For a wall-mounted connection, establish the sleeve or wall penetration location before exterior finishes are completed. The FDC should be solidly supported and aligned so hose lines can be attached without striking the wall, building projections, or adjacent equipment. Seal the penetration appropriately to maintain the wall assembly and prevent water intrusion, while avoiding a configuration that restricts movement or future service.

For a freestanding connection, install the underground lead-in pipe at the specified depth and route it to the system side connection shown on the plans. Provide proper support for the FDC body and avoid loading the underground pipe with the weight of the assembly. Where settlement is possible, the support method and piping transitions deserve particular attention. A shifted connection can create stress on joints, affect drainage, or leave the inlets out of alignment.

Install the required check valve in the correct flow direction. The check valve prevents water introduced through the FDC from discharging back toward the public water supply or an unintended system path. Depending on the system design, additional valves, gauges, drains, or ball drip arrangements may be required. Follow the listed installation instructions for every component, particularly when using a specialty FDC, pressure-restricting device, or integrated check valve assembly.

Keep the piping arrangement as direct as the approved design allows. Unnecessary fittings add friction loss and complicate inspection. More importantly, do not field-modify pipe sizing or reroute the FDC lead without confirming the hydraulic impact. The fire department connection is part of the designed water delivery path, not an accessory that can be adjusted for convenience.

Protect Access, Visibility, and the Connection Itself

An FDC should be easy to recognize from the fire apparatus access route. Provide the required identification sign and lettering, using the wording, color, and visibility standards adopted by the AHJ. If the connection is located behind a gate, across a landscaped area, or outside the obvious building frontage, confirm that the fire department accepts the arrangement.

Maintain clear working space around the inlets. Avoid placing the FDC behind fencing, stored materials, rooftop equipment access paths, or parking spaces. A connection located near a drive aisle may need bollards or another impact barrier, yet protection should never make it difficult to attach hose lines. This is a common field coordination issue: the same bollard layout that protects the connection can obstruct a firefighter if it is placed too close.

Caps and plugs should be secure, serviceable, and compatible with the inlet threads. Missing caps invite debris, ice, insects, and corrosion. Chains should retain caps without interfering with a hose connection. For exposed locations, evaluate whether a protective cabinet, guard, or locking arrangement is appropriate under local requirements.

Inspect, Test, and Obtain Approval

Before requesting final inspection, inspect the installation against the approved plans and manufacturer instructions. Verify that inlet swivels turn freely, caps are in place, signage is legible, piping is supported, and the system is unobstructed. Confirm that the connection is not painted over, buried by landscaping, or blocked by temporary construction materials.

The FDC piping must be included in the applicable hydrostatic testing and acceptance procedures for the system. Testing should be performed by qualified personnel using the pressures, durations, documentation, and witnessing requirements applicable to the installed system. If the fire department connection serves a combined system, verify the water path and valve configuration carefully so the connection supplies the intended portions of the system.

Coordinate the final inspection with the AHJ and, where required, the local fire department. Have approved drawings, material data, test records, and any required signage details available. A failed final inspection often comes down to a preventable issue: wrong threads, missing identification, insufficient access, improper mounting height, or an unapproved field change.

Plan for Long-Term Service

An FDC is exposed equipment, and its condition should be checked during routine fire protection inspections. Facilities teams should keep the connection visible, clear of snow and vegetation, protected from vehicle damage, and fitted with intact caps or plugs. Any damaged swivel, corroded cap, broken chain, faded sign, or impact-damaged piping should be addressed promptly with listed replacement components.

For contractors and maintenance buyers, the best installation decision is usually made before the truck arrives on site: verify the thread standard, system application, inlet configuration, finish, signage, and required accessories against the approved design. Fire Protection Parts can help source trusted, code-conscious components when a project requires a standard replacement or a specialized FDC assembly. A well-specified connection gives responding crews one less uncertainty when the system needs water most.
