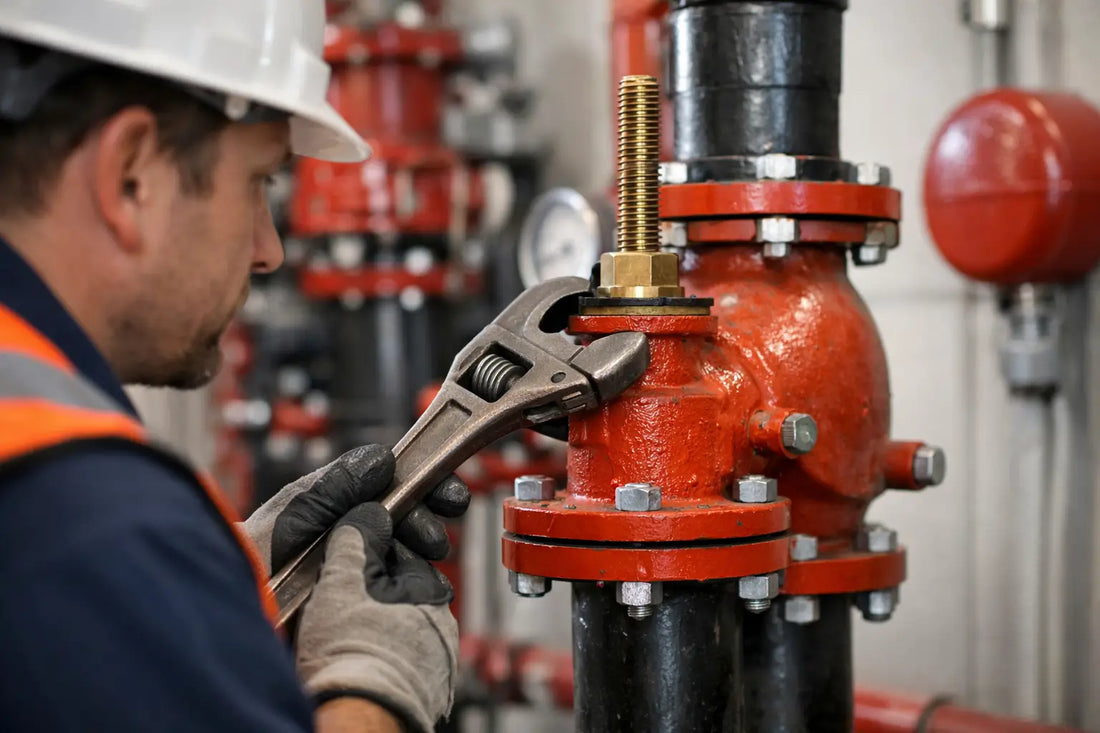

How to Replace an OSY Valve in Fire Systems
An OS&Y valve that will not fully open, leaks at the stem, has damaged threads, or cannot be supervised reliably is not a minor maintenance issue. Knowing how to replace OSY valve assemblies correctly means managing a fire protection impairment, matching the replacement to the existing system, and restoring the system with documented testing. This work affects a life safety system, so it should be planned and performed by qualified fire protection personnel in accordance with the applicable code, the authority having jurisdiction (AHJ), and the building's impairment procedures.
OS&Y means outside screw and yoke. The stem rises visibly as the valve opens, providing a straightforward indication of valve position. These valves are common on sprinkler system control valves, fire pump connections, and other fire protection piping where a listed indicating valve is required. Although buyers often search for an "OSY valve," the product may be labeled OS&Y by the manufacturer.
Confirm That Replacement Is the Right Repair
Before isolating a system, identify the actual failure. A packing leak at the stem may be repairable with a compatible packing kit and proper adjustment. A leaking bonnet gasket, damaged handwheel, frozen stem, stripped operating threads, body corrosion, or a valve that will not achieve full travel may justify complete replacement. The decision depends on the valve's condition, available manufacturer repair parts, system downtime, and whether the valve will remain listed and reliable after repair.
Do not select a replacement by nominal pipe size alone. Verify the valve's pressure rating, end connection, body material, trim arrangement, supervision needs, and listing or approval markings. A 4-inch grooved OS&Y valve is not interchangeable with a 4-inch flanged or threaded valve without addressing the piping connections and system design. For sprinkler service, the replacement must be suitable and listed for the specific fire protection application.
Record the manufacturer, model, size, pressure rating, end style, flow direction if marked, and installed orientation. Photograph the valve, supervisory switch, pipe connections, and accessible nameplate before removal. These details reduce ordering errors and help ensure the replacement fits the existing riser or control assembly without unplanned field modifications.
Plan the Fire Protection Impairment
Replacing an OS&Y valve takes a protected system, or at least a portion of it, out of service. Treat that condition as an impairment, not ordinary plumbing work. The building owner or representative, monitoring company, affected occupants when applicable, insurer, and AHJ should be notified according to the site's impairment plan and local requirements.
A qualified person should define the exact area affected and establish compensating measures before the valve is closed or removed. Depending on the building and duration of the work, this can include a fire watch, restricting hot work, limiting hazardous operations, and staging extinguishers. Never leave an impaired fire sprinkler system without clear responsibility for monitoring and restoration.
Before starting, confirm these job-critical items:
- The correct listed replacement valve, gaskets, bolts, couplings, and supervisory components are on site.
- The system isolation point is known, accessible, and capable of holding without leakage.
- Drain locations can handle the expected water volume without property damage or unsafe discharge.
- The required permits, notifications, testing equipment, and restoration documentation are ready.
- The crew has verified whether downstream pressure, trapped water, or a backfeed source could remain after isolation.
How to Replace an OSY Valve: The Field Sequence
1. Isolate, lock, and drain the affected section
After impairment notifications and safeguards are in place, close the upstream control valve or otherwise isolate the section following the approved procedure. Apply lockout/tagout practices where required. Open the appropriate test connection or drain slowly to relieve pressure and drain the piping.
Verify zero pressure with a reliable gauge before loosening any bolts, grooved couplings, unions, or threaded components. Do not assume a drain has fully relieved pressure. Water can remain trapped above closed valves, in vertical piping, and in sections without adequate drainage. Open drains carefully and anticipate residual water when separating the valve.
2. Remove the old valve without damaging the piping
Support adjacent pipe before removing a heavy valve. OS&Y valves can impose meaningful weight on grooved couplings, flanges, and nearby fittings. If the valve is flanged, loosen bolts in a controlled pattern after confirming support is in place. For grooved valves, follow the coupling manufacturer's removal procedure and inspect the gasket seats and grooves once the coupling is removed.
Avoid cutting pipe unless the replacement plan specifically requires it. Cutting often turns a valve change into a larger fitting, alignment, and inspection issue. If corrosion, inadequate pipe engagement, damaged grooves, or misalignment is discovered, stop and correct the condition with an approved repair approach rather than forcing the new valve into place.
3. Inspect the mating connections and select new hardware
Clean flange faces, grooved ends, threads, or connection surfaces as applicable. Replace compromised bolts, nuts, gaskets, coupling gaskets, and other connection hardware with components rated for the service. Reusing compressed flange gaskets or visibly corroded hardware is a common shortcut that can create leaks during refill.
For flanged installation, use the gasket type specified for the valve and fire protection service. Align the faces squarely, install bolts correctly, and tighten in a cross pattern to the manufacturer's torque guidance. For grooved ends, confirm groove dimensions, gasket compatibility, lubrication requirements, and coupling installation instructions. Threaded valves require proper thread engagement and compatible sealant, but overtightening can damage the valve body or piping.
4. Install the replacement in the correct orientation
Set the new OS&Y valve so the handwheel, stem, and supervisory equipment remain accessible for operation, inspection, and testing. Observe any marked flow arrow and the manufacturer's installation limits. The valve should not be used to pull misaligned pipe into position. Correct pipe support and alignment first, then make the connection without placing the valve body under strain.
If the valve uses a tamper switch or supervisory switch, install it according to the valve and switch manufacturer's instructions. A closed or partially closed indicating valve can compromise sprinkler protection, so supervisory signaling is not an accessory detail. Confirm the switch is appropriate for the control valve and compatible with the fire alarm monitoring arrangement.
5. Refill slowly and inspect every connection
Close drains and refill the system gradually. Slow filling helps prevent water hammer, reduces stress on fittings, and gives the crew time to identify leakage. Keep high-point vents or inspector's test arrangements in mind as air is displaced. Once normal pressure is restored, inspect the new valve body, packing area, end connections, and nearby pipe joints.
A small leak during refill is not something to watch later. Depressurize and correct it using the proper procedure. Tightening a connection under pressure without an approved method can create a more serious failure and extend the impairment.
Test, Supervise, and Document the Restoration
The final step is more than turning the handwheel open. Fully open the OS&Y valve, then back it off only if the manufacturer specifies that practice. Verify the visible stem position corresponds to full open, and secure the valve in its normal position using the required supervisory or locking arrangement.
Test the valve supervisory switch by operating it as permitted by the system's procedure and verify the expected signal at the fire alarm control panel or monitoring service. Restore all alarm and monitoring functions that were bypassed for the work. Conduct any required main drain, alarm, waterflow, or acceptance testing based on the scope of work and the applicable NFPA standard, local code, and AHJ direction.
Document the old valve condition, replacement model and ratings, test results, notification times, impairment duration, and the person who authorized restoration. This record supports inspection readiness and gives the facility a clear maintenance history.
When sourcing the valve and connection components, Fire Protection Parts can help contractors match listed, brand-name fire protection products to the job requirements. Provide the existing valve data, pipe size, end connections, pressure rating, and photos when requesting assistance. Accurate identification up front is usually the fastest way to avoid a return trip and an extended impairment.
A properly replaced OS&Y valve should leave the system fully open, supervised where required, leak-free, and ready to perform when it is needed most.
