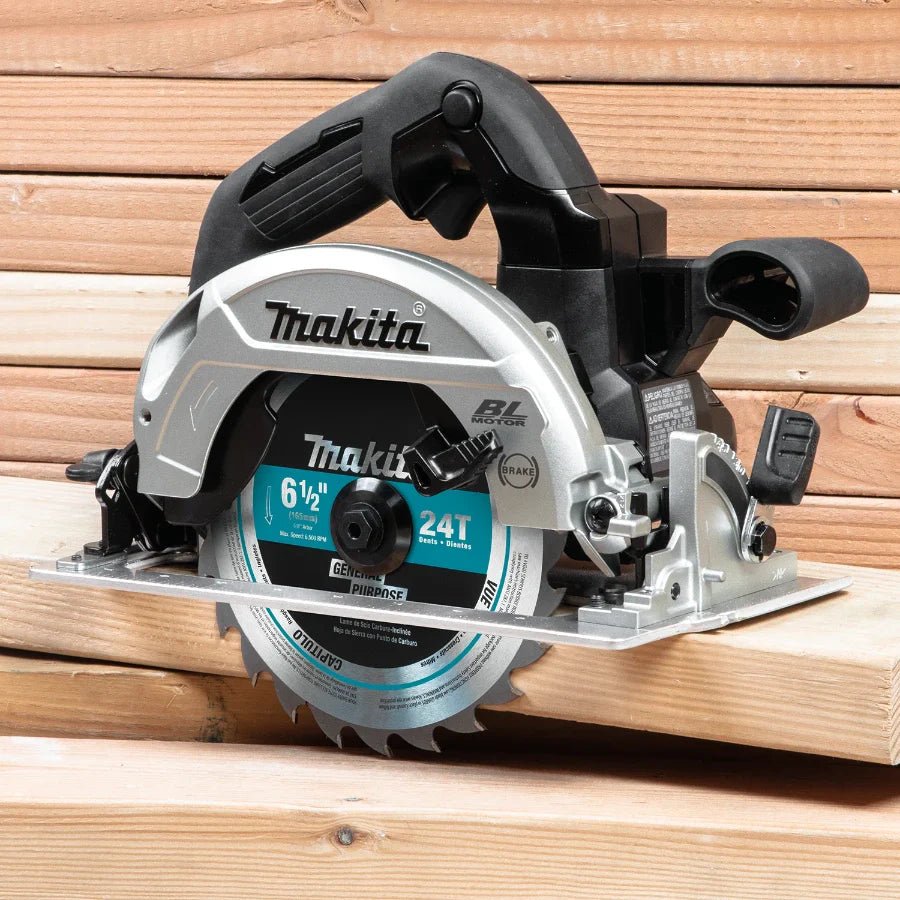

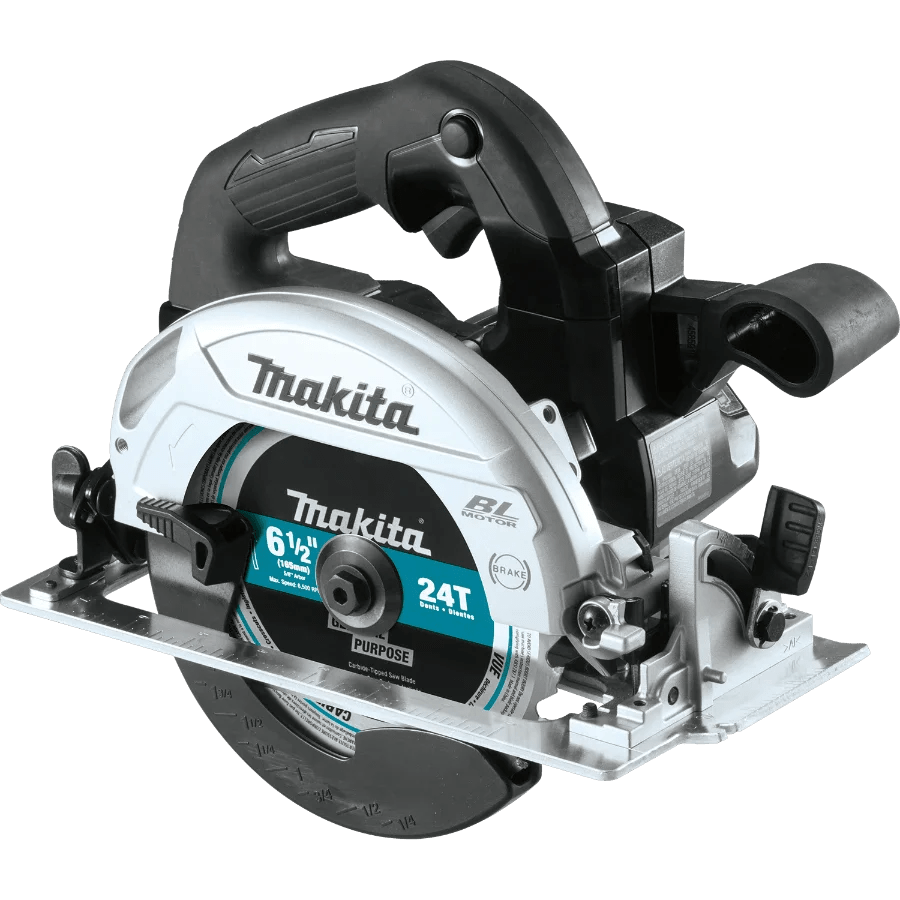

Makita XSH04ZB 18V LXT Sub-Compact Brushless Cordless 6-1/2" Circular Saw

Makita XSH04ZB 18V LXT Sub-Compact Brushless Cordless 6-1/2" Circular Saw

Product code: XSH04ZB

Prix habituel $135.00
Prix habituel $189.00 Prix promotionnel $135.00
28% OFF

Fast Shipping To USA & Canada

100% Satisfaction Guaranteed

365-Day Warranty

Description

Makita XSH04ZB 18V LXT Sub-Compact Brushless Cordless 6-1/2" Circular Saw

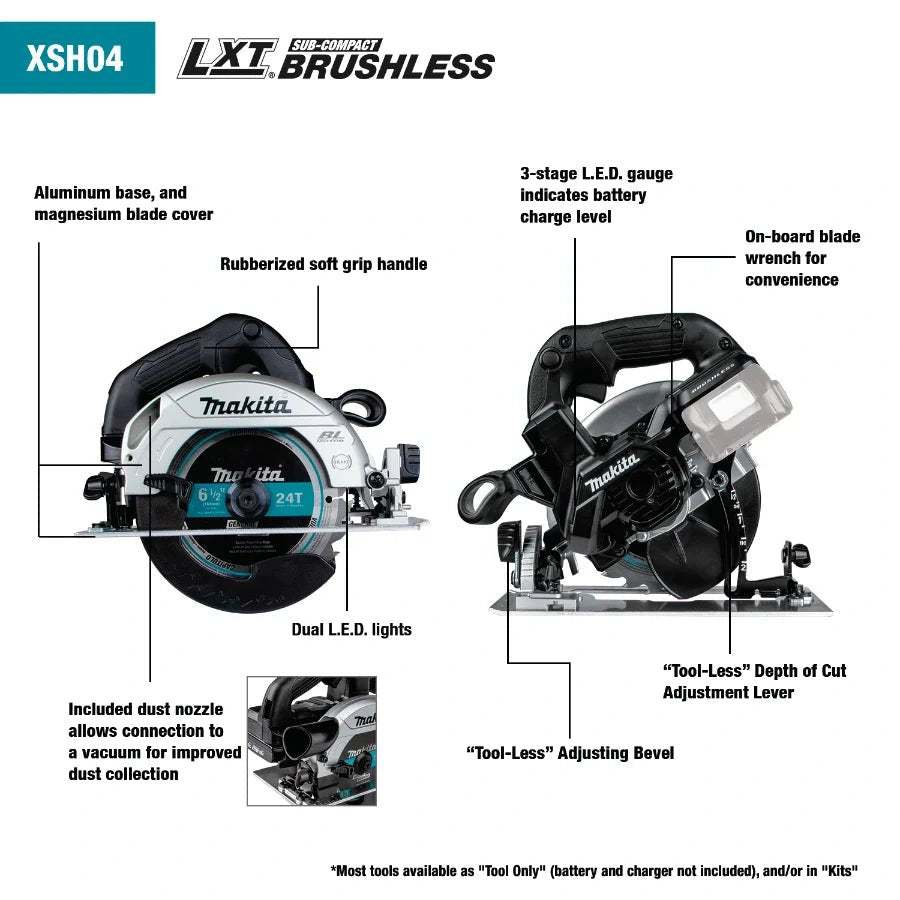

  • ERGONOMICS : Compact and ergonomic blade-right design at only 10-5/8" long and 6.4 lbs. with 2.0Ah battery
  • PERFORMANCE : Delivers up to 174 crosscuts per charge in 2x10 SPF using one 5.0Ah battery (battery not included)

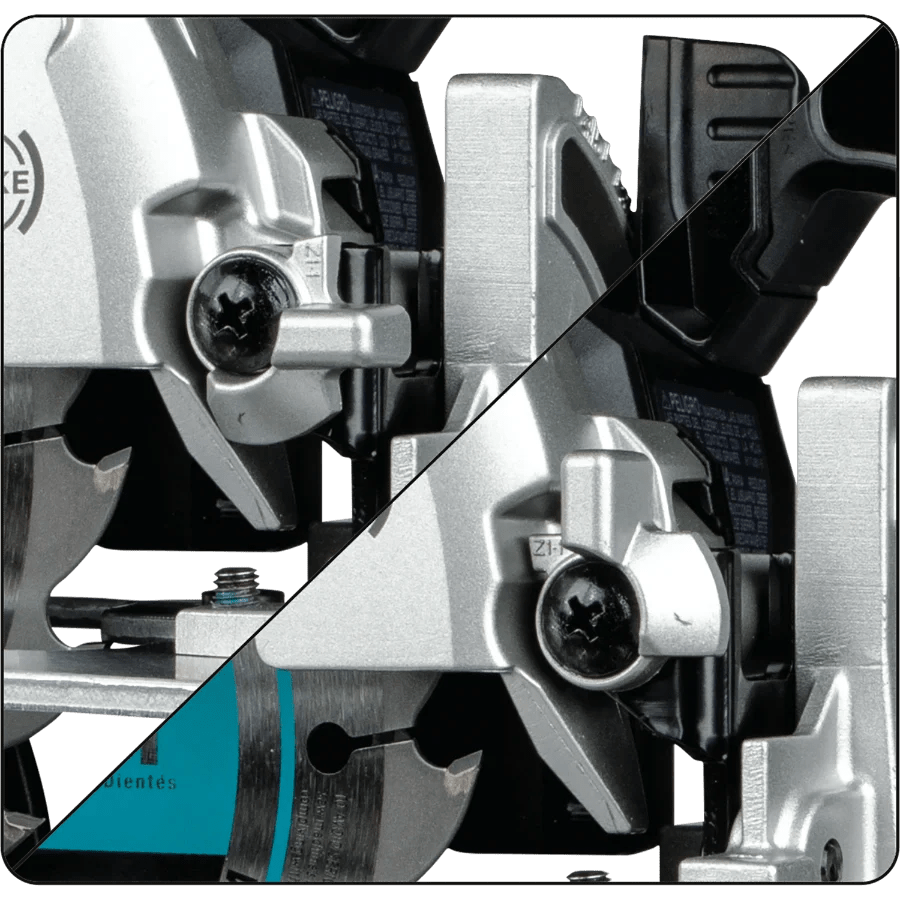

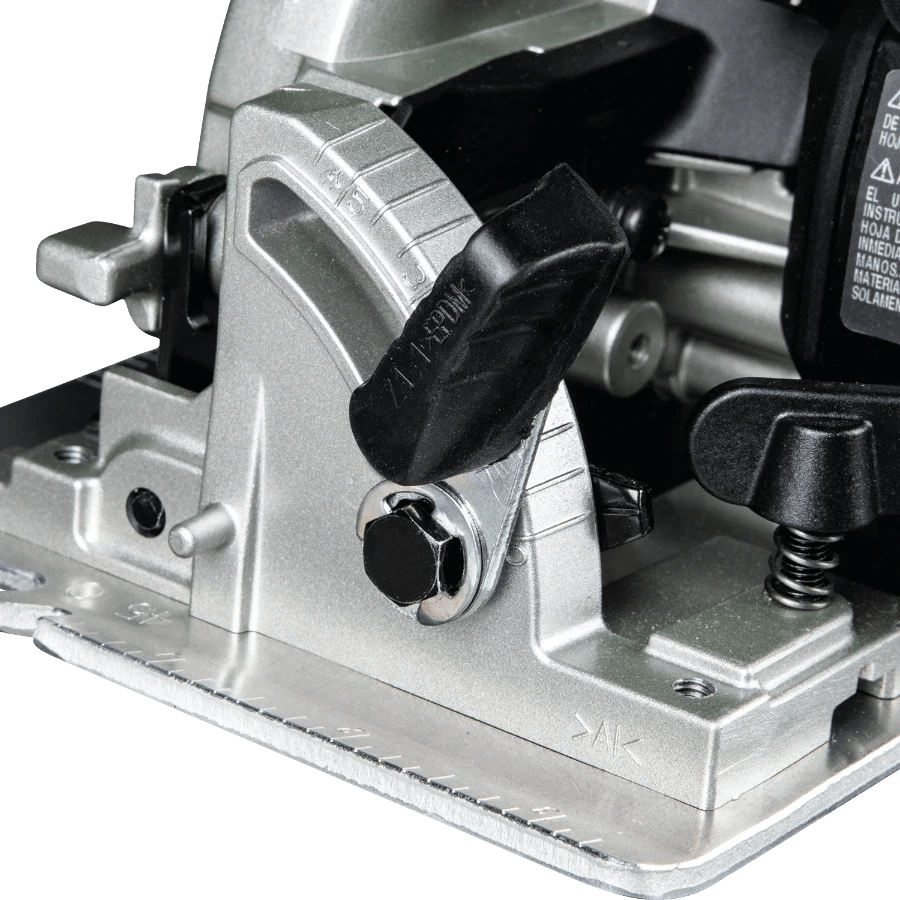

  • CAPACITY : Large cutting capacity (2-1/4” at 90°) and bevel capacity (0°- 50°)
  • DESIGN : On-board blade wrench for convenience
  • INCLUDES : Includes tool only (battery and charger not included)

Makita created a new class in cordless with 18V LXT® Sub-Compact tools. Makita Sub-Compact gives users 12V handling with 18V performance, and compatibility with the world’s largest 18V cordless tool system. The XSH04ZB is engineered for cutting and ripping applications, and is ideal for any contractor seeking a more compact cutting solution for framing, roofing, formwork, and more.

The Sub-Compact 6-1/2” Circular Saw has a compact and ergonomic design at only 10-5/8” and 6.4 lbs. (with 18V LXT® Compact 2.0Ah battery, battery and charger sold separately). The compact size combined with the Makita-built brushless motor delivers up to 5,000 RPM and a superior power-to-weight ratio. The saw is equipped with Makita’s Automatic Speed Change™ technology, which adjusts cutting speed and torque under load for optimum cutting performance. The efficient brushless motor is electronically controlled to provide up to 50% longer run time than non-brushless motors, and in run-time testing the XSH04 made up to 174 cross-cuts per charge in 2x10 SPF lumber using one 5.0Ah battery (sold separately). For extended run time users can load up a high amp-hour 18V LXT® battery (all sold separately) including 2.0Ah (BL1820B), 3.0Ah (BL1830B), 4.0Ah (BL1840B), 5.0Ah (BL1850B) or 6.0Ah (BL1860B).

Added convenience features include dual L.E.D. lights, electric brake, built-in tether notch (tether sold separately), and Extreme Protection Technology (XPT™) for improved dust and water resistance in harsh job site conditions. For improved dust extraction, the rear dust port easily connects to a vacuum system (dust extraction accessories sold separately).

It’s part of Makita’s expanding 18V LXT® system, the world’s largest cordless tool system powered by 18V Lithium-Ion batteries. Makita 18V LXT® batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.

  • Compact and ergonomic blade-right design at only 10-5/8" long
  • Weighs only 6.4 lbs. with 2.0Ah battery (battery not included) for operator comfort
  • Up to 25% faster cutting*
  • Powerful Makita built electronically controlled BL™ Motor delivers 5,000 RPM for faster cutting and ripping
  • The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life
  • Large cutting capacity (2-1/4” at 90°) and bevel capacity (0°- 50°)

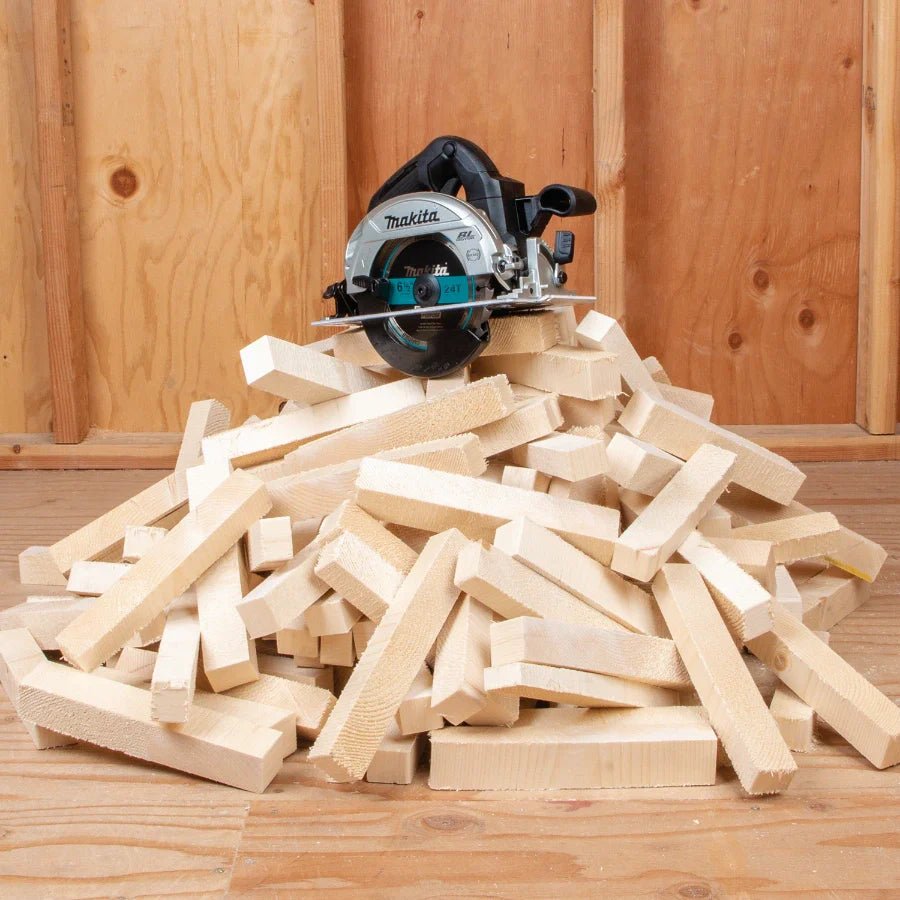

  • LXT® technology delivers up to 174 crosscuts per charge in 2x10 SPF lumber using one 5.0Ah battery (battery not included)
  • Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance

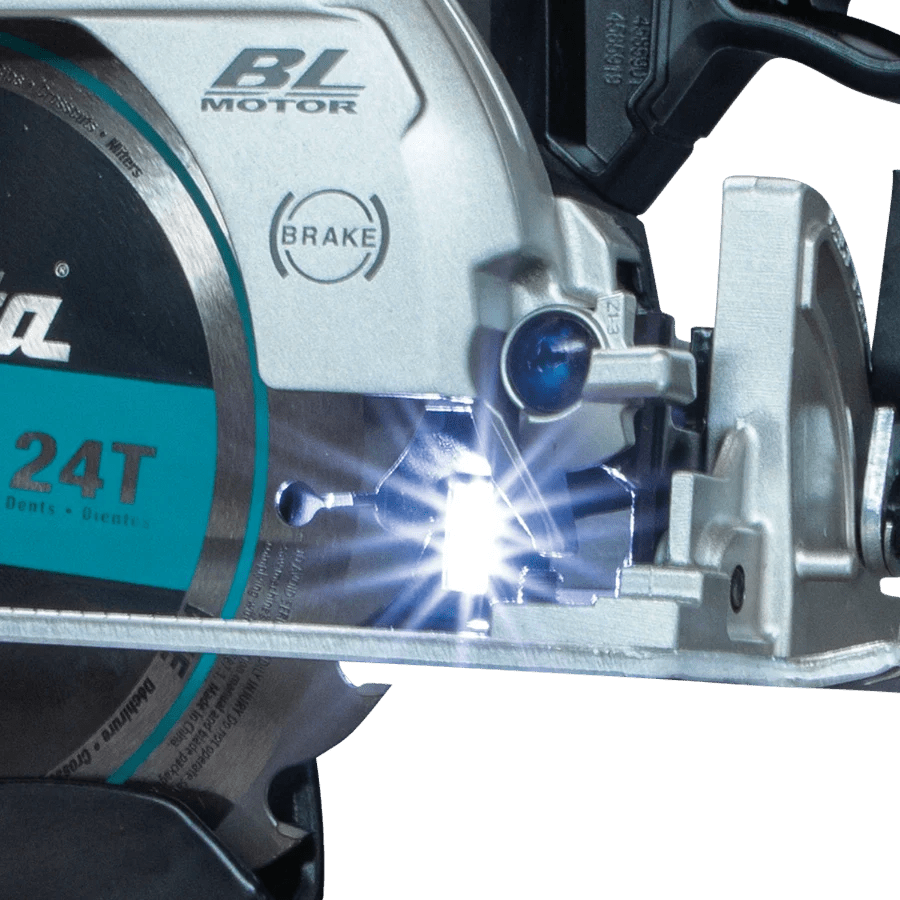

  • Dual L.E.D. lights illuminate the work area
  • Electric brake for maximum productivity

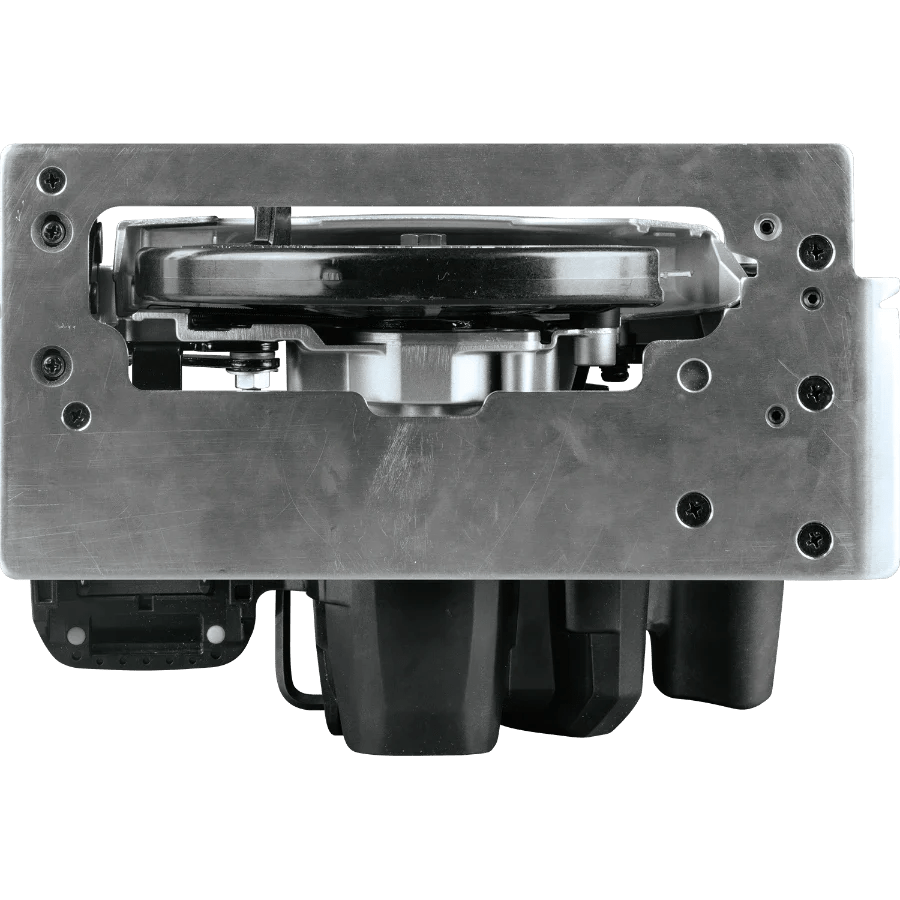

  • Aluminum base and magnesium blade cover provide a lightweight, durable design
  • Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions

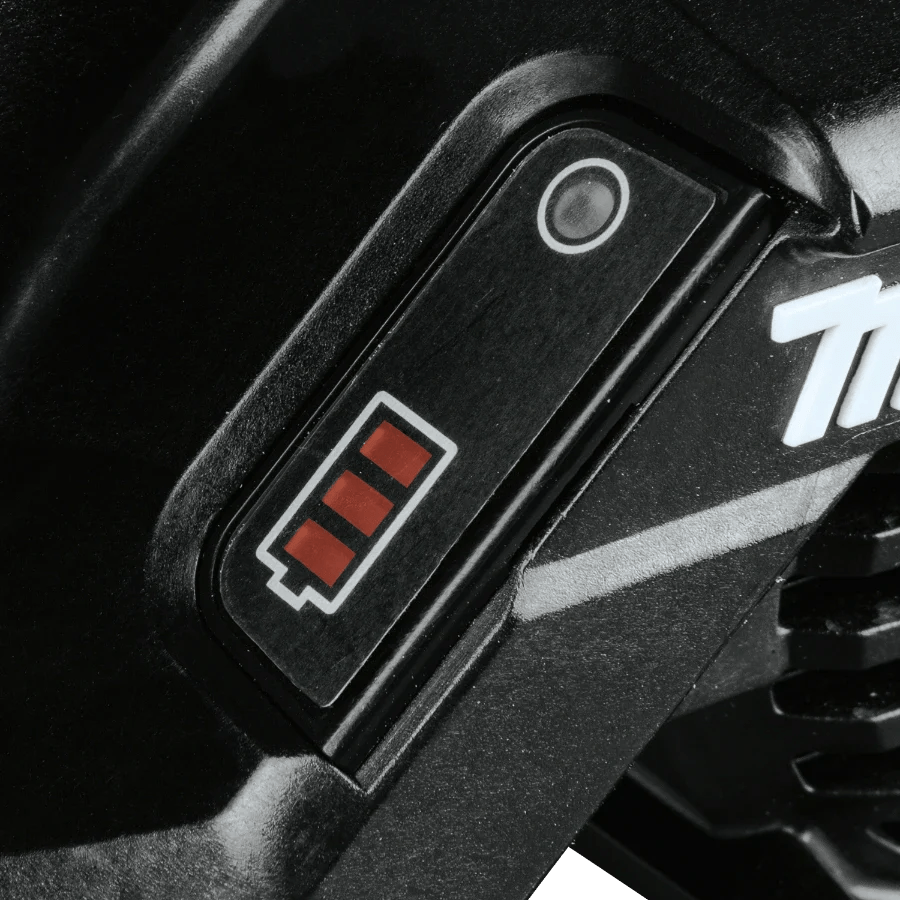

  • 3-stage L.E.D. gauge indicates battery charge level

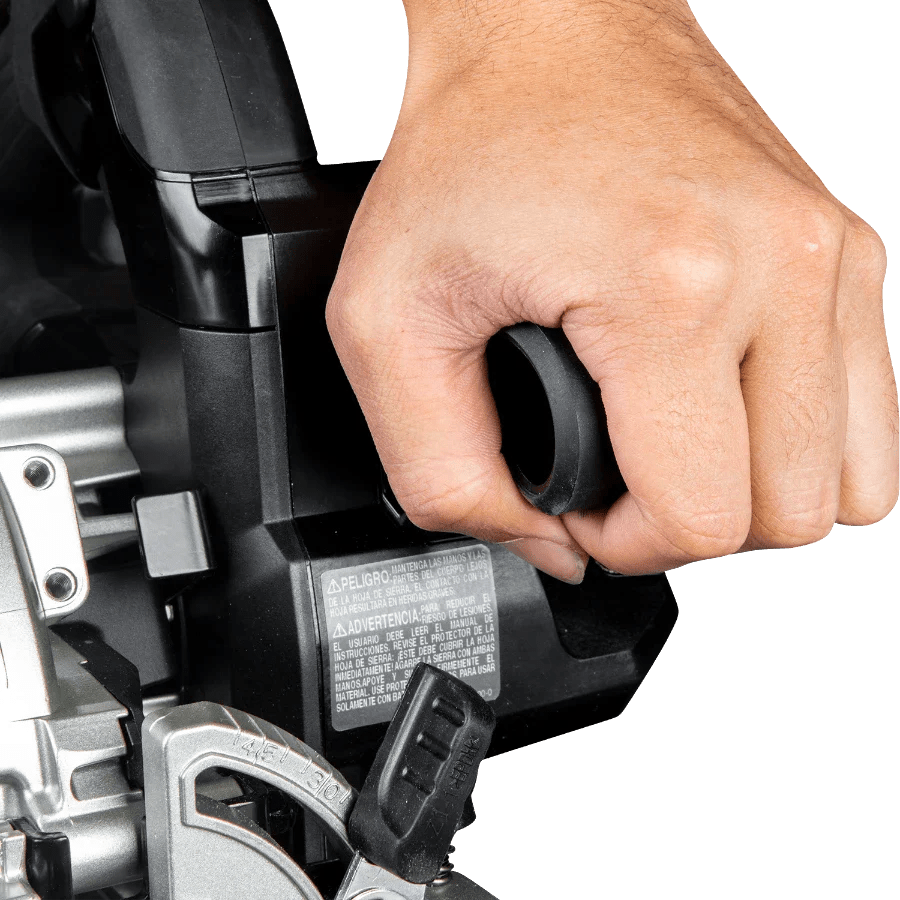

  • Rubberized soft grip handle provides increased comfort on the job

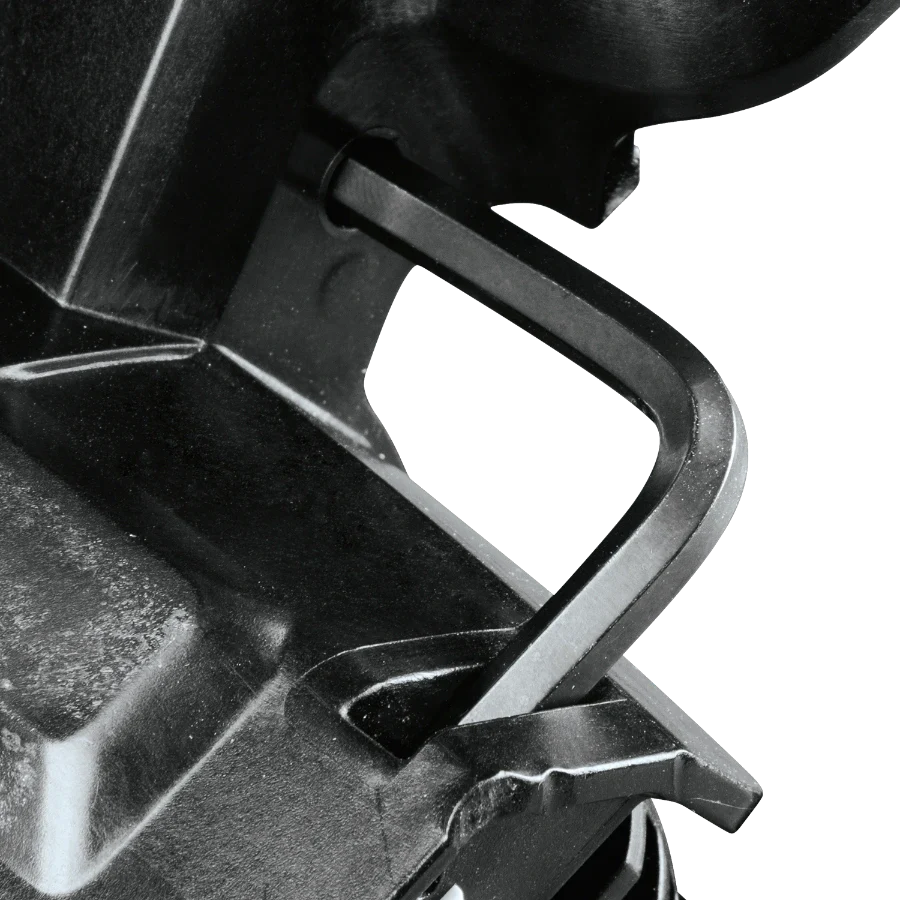

  • On-board blade wrench for convenience
  • Built-in dust blower cleans the line of cut for operator accuracy

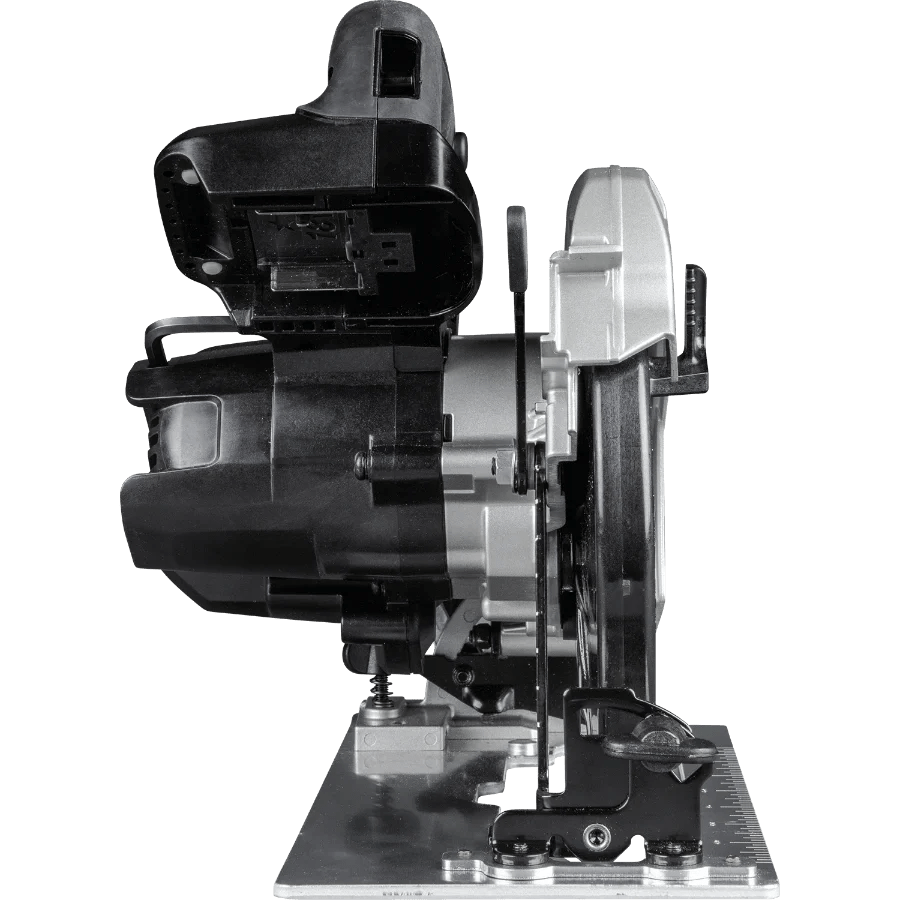

  • Flat motor housing design for stability when changing the blade
  • Ideal for framers, builders, roofers, forming, and more

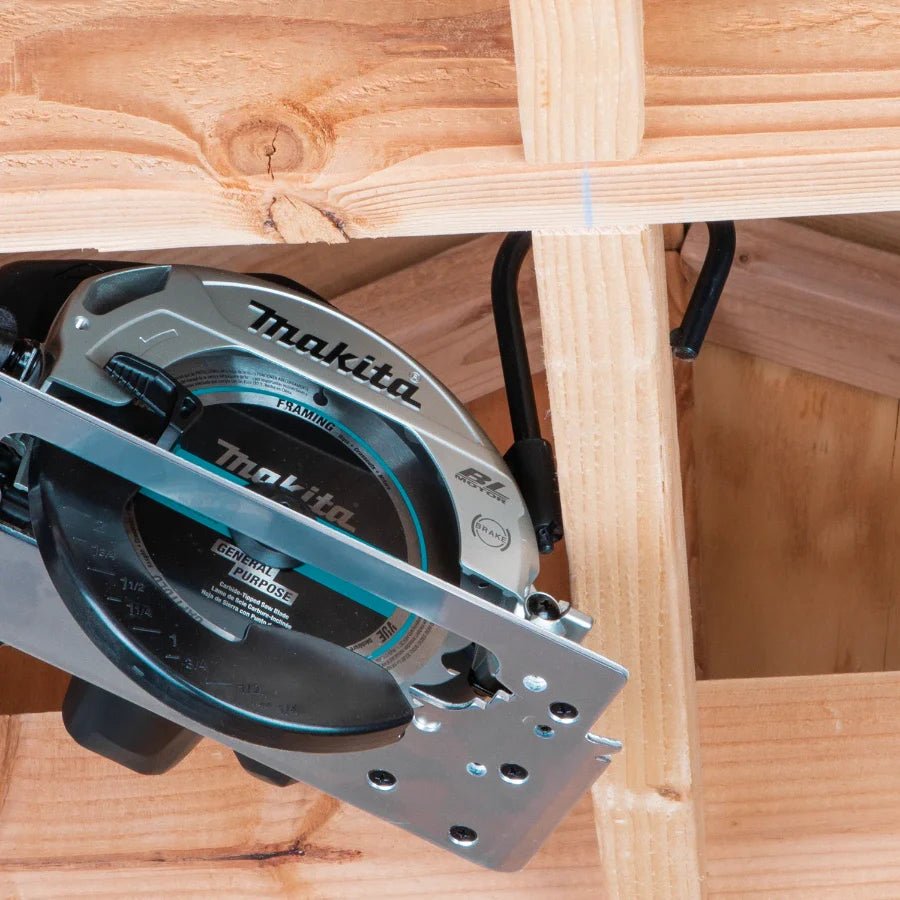

  • Built-in tether notch (tether sold separately)

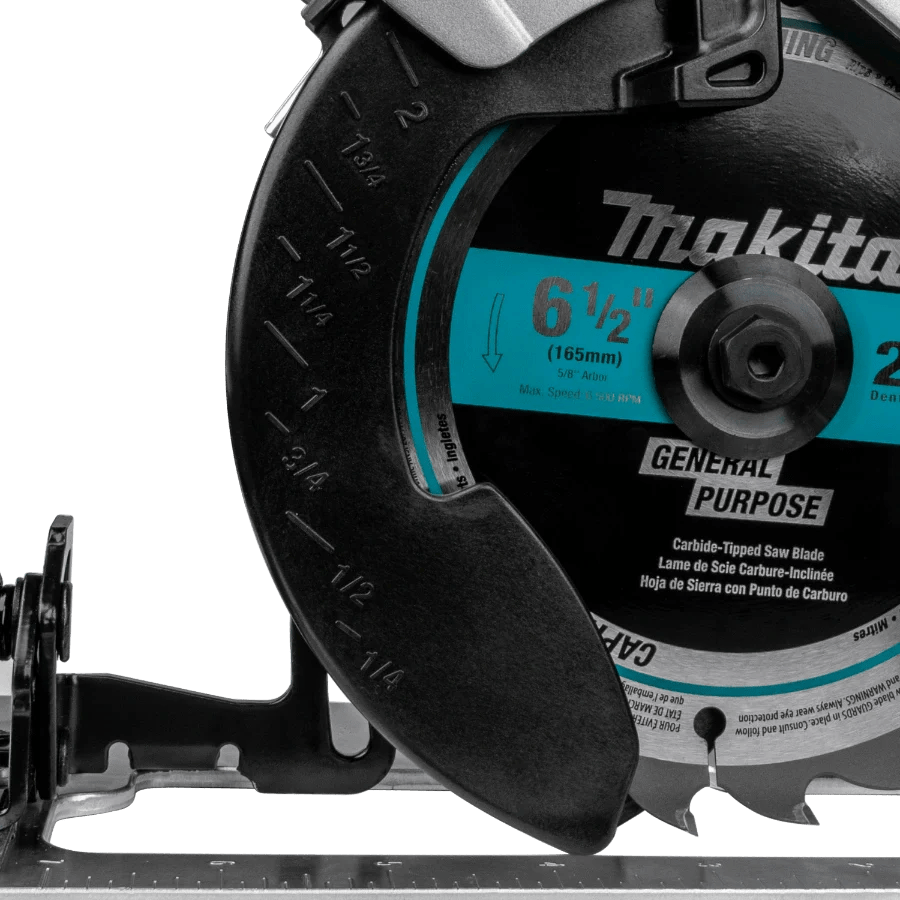

  • Includes a premium 24 tooth ultra thin kerf carbide tipped saw blade (A-85092) ideal for cordless circular saws; delivers smoother cuts and minimal material loss

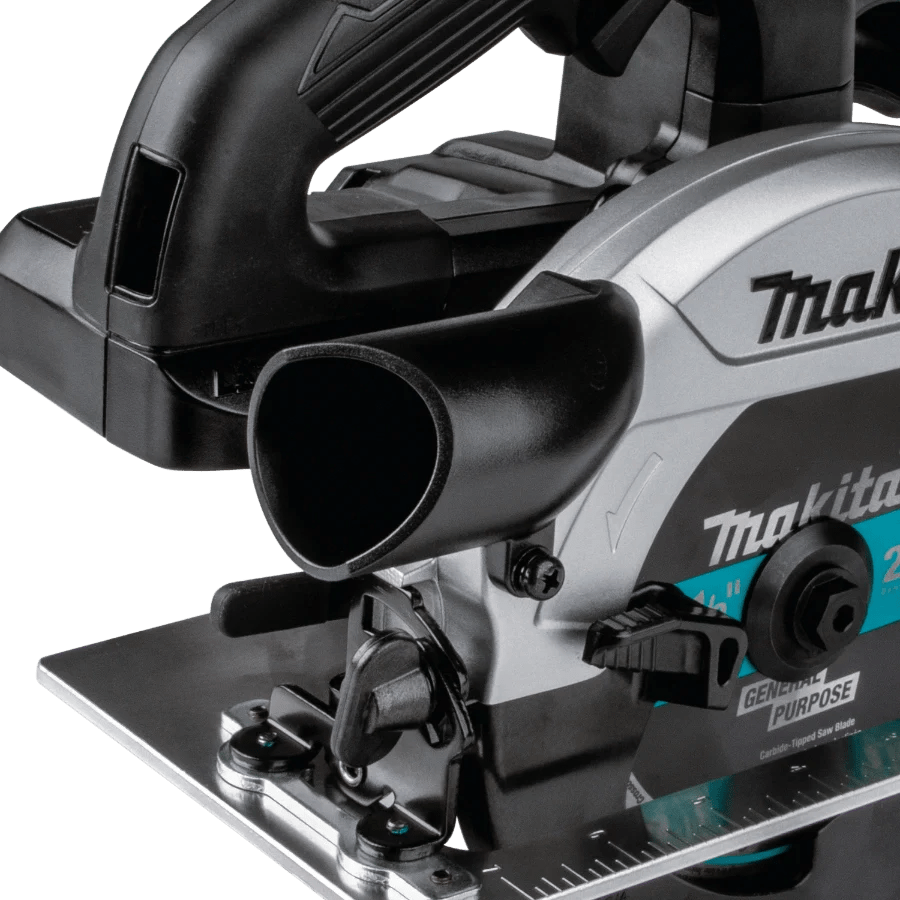

  • Included dust extracting attachment directs material away from the operator; allows connection to a vacuum for improved dust collection
  • Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
  • Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
  • Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)
  • Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
  • Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
  • 3-year limited warranty
  • Only use genuine Makita batteries and chargers
  • *Compared to competitors
  • Tool users who unplug the cord with Makita 18V LXT® experience new levels of convenience, efficiency and productivity. Makita created the 18V Lithium-Ion cordless tool category in 2005, and today it is the world’s largest 18V cordless tool line-up. Makita’s leading technology gives tool users unmatched performance and breadth of line, with innovation in motor and battery technology that is obliterating industry standards – and leaving old thinking behind. With high amp-hour batteries, efficient brushed and brushless motors, and 36V (18V X2) LXT® technology, Makita 18V LXT® tools not only meet corded demands, they can exceed the performance of corded, all while remaining in a single cordless platform powered by the industry's fastest-charging 18V lithium-ion batteries.
  • Makita cordless tools are engineered for industrial applications, and for added protection during the most demanding jobs Makita created STAR Protection Computer Controls™. STAR is communications technology that monitors conditions during use, allowing the tool and battery to exchange data to protect against overloading, overdischarging and overheating. If STAR detects conditions that threaten to overload, overdischarge or overheat the tool or battery, the tool will automatically stop. At that time the user can either restart the tool, change or charge the battery, and put the tool back to work. When you slide a Makita 18V LXT® battery with the STAR symbol onto a Makita tool that has either the STAR symbol or a yellow terminal, you are benefitting from STAR Protection Computer Controls™.
  • When the job takes your Makita tool into harsh conditions, Makita Extreme Protection Technology (XPT™) provides added protection. XPT™ is a series of integrated seals engineered to channel away dust and water for increased durability. Wherever the job takes you, Makita tools equipped with XPT™ are engineered for increased durability and longer tool life.

  • Compressors equipped with a Big Bore™ piston, cast iron pump and heavy duty crankshaft deliver faster recovery time and higher CFMs for more efficient nailing and fastening. The Big Bore™ piston and cylinder are larger than those in standard compressors, so they compress more air on each stroke. The result is increased compressor efficiency, faster recovery, and lower RPM for reduced noise.
  • Blade Diameter : 6-1/2"
  • No Load Speed : 5,000 RPM
  • Max. Cutting Capacity (at 90°) : 2-1/4"
  • Max. Cutting Capacity (at 45°) : 1-5/8"
  • Arbor : 5/8"
  • Net Weight (with battery) : 6.4 lbs.
  • Battery : 18V LXT® Lithium-Ion
  • Overall Length : 10-5/8"
  • Blade Location : Right
  • Handle Type (Circular Saws) : Top handle
  • Form Factor (LXT) : Sub-Compact
  • Motor Type : Brushless
  • Shipping Weight : 7.6 lbs.
  • UPC Code : 088381-863483

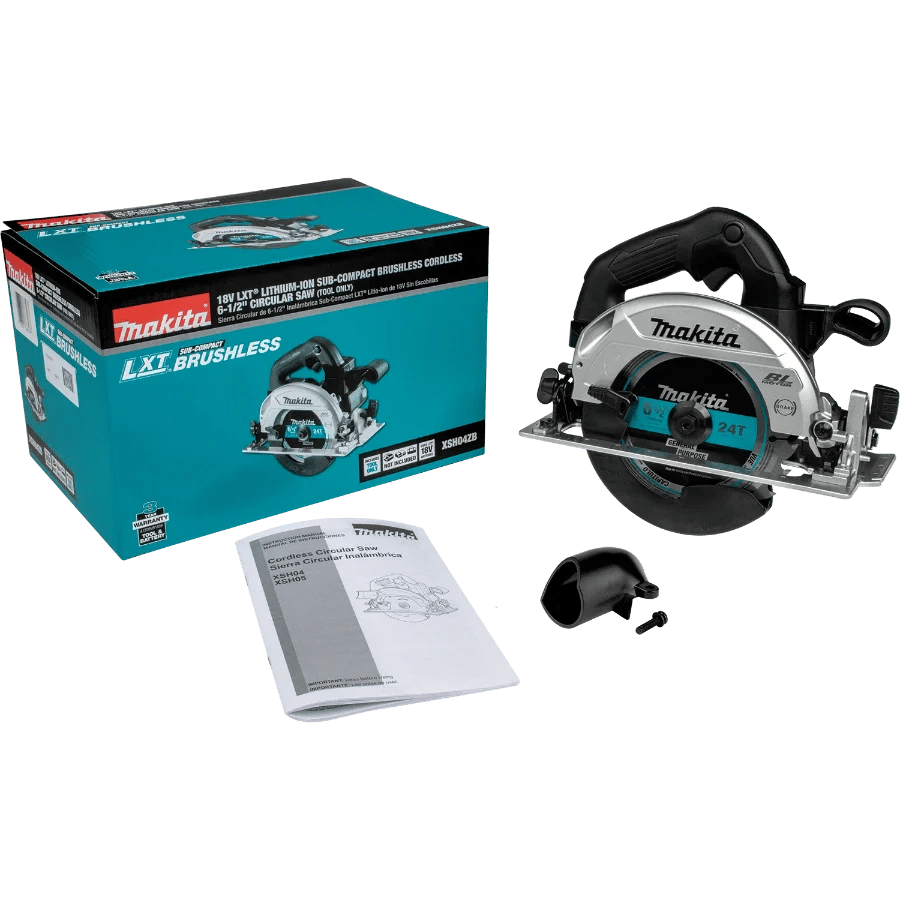

INCLUDES

  • (1) 6-1/2" 24T C.T. Saw Blade (A-85092)
  • (1) Dust Extracting Attachment (199230-9)
  • (1) Hex Wrench (783203-8)
